RBwAPGR-5HacD2HnD&R11e-LTE6

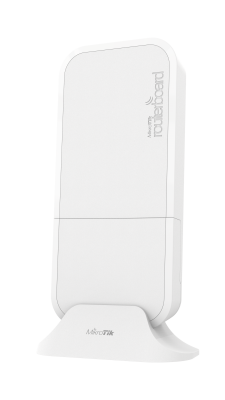

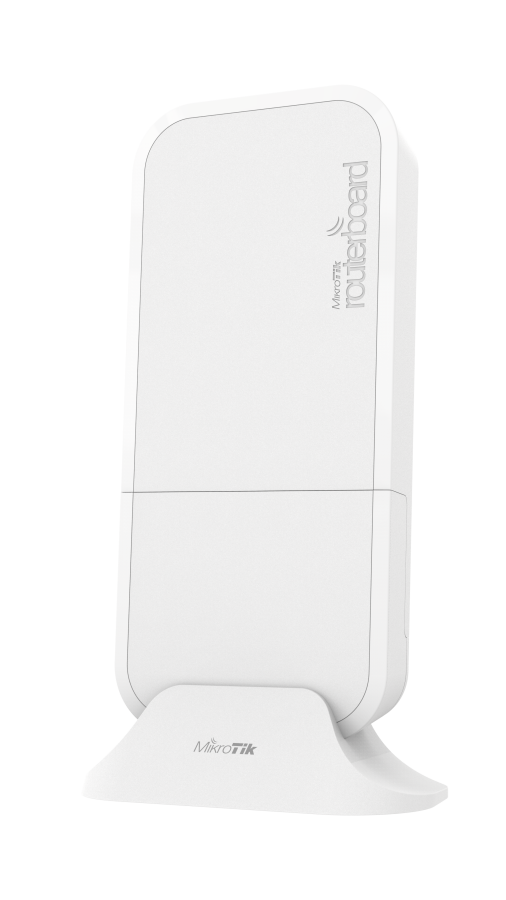

The MikroTik RBwAPGR-5HacD2HnD&R11e-LTE6 is a compact and durable dual-band (2.4 GHz and 5 GHz) wireless access point. Additionally, it provides high-speed mobile internet connection through CAT6 LTE modem integration. With these features, it is ideal for both indoor and outdoor use.​

📦 Hardware Specifications

• Model Code: RBwAPGR-5HacD2HnD&R11e-LTE6

• İşlemci: Qualcomm IPQ-4018, 4-core, 716 MHz

• RAM: 128 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (License Level 4)

• MiniPCIe Slot: 1 unit (for R11e-LTE6 modem)

• SIM Card Slot: 1 piece Micro SIM

• Boyutlar: 185 x 85 x 30 mm

• Operating Temperature: -30°C to +60°C

• IP Protection Class: IP54 (protected against dust and water splashes)​

📡 Wireless and LTE Features

• Wireless Standards:

  • 2.4 GHz: 802.11b/g/n (Wi-Fi 4), 2x2 MIMO, 300 Mbps

  • 5 GHz: 802.11a/n/ac (Wi-Fi 5), 2x2 MIMO, 867 Mbps

• Antenna Gain:

  • 2.4 GHz: 2.5 dBi

  • 5 GHz: 2.5 dBi

• LTE Modem: R11e-LTE6 (in miniPCIe format)

  • LTE Category: CAT6 (300 Mbps download, 50 Mbps upload)

  • Carrier AggregationYes

  • Supported LTE Bands:

    • FDD1, 2, 3, 5, 7, 8, 12, 17, 20, 25, 26

    • TDD38, 39, 40, 41n

  • 3G and 2G SupportYes

  • Connection Interface: 2 pieces of U.FL connector​

🔌 Power and Connection

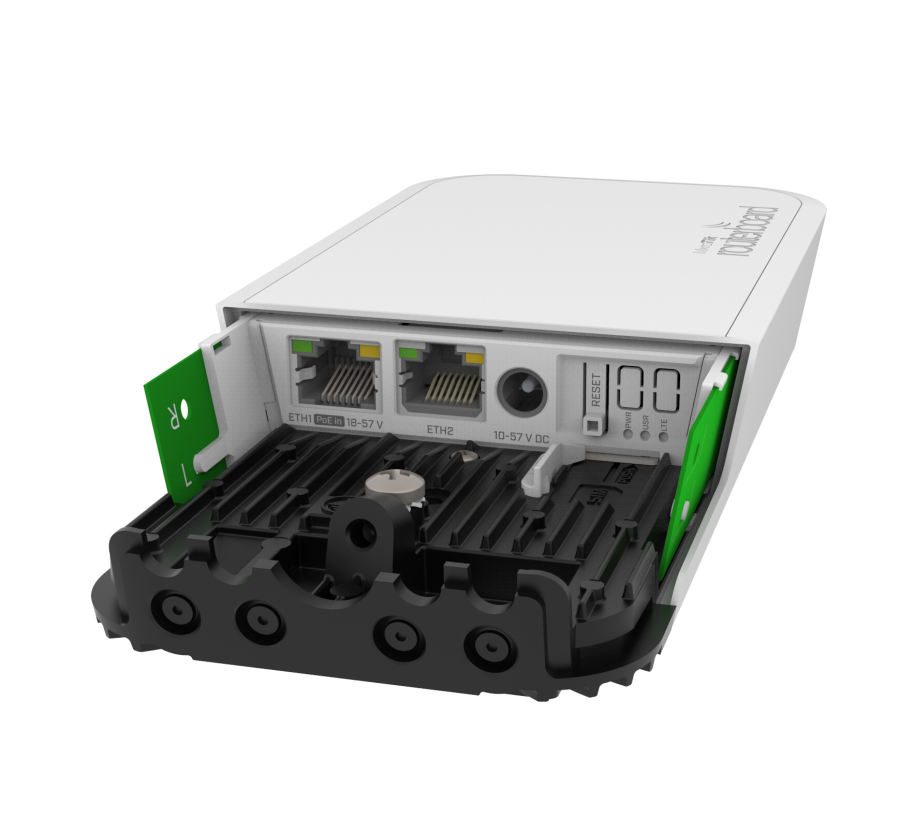

• Ethernet Ports: 2 x 10/100/1000 Mbps Gigabit Ethernet

• Power Inputs:

  • DC Jack: 10–57 V

  • PoE-in: 802.3af/at or Passive PoE (18–57 V)

• Maximum Power Consumption16 W

• Soğutma: Pasif​

🛠️ Additional Features

• IPsec Hardware AccelerationYes

• Assembly Options: Suitable for wall, ceiling, or pole mounting.

• Box Contents:

  • Cihaz

  • Power adapter

  • PoE injector

  • Assembly apparatus
