RBwAPG-60adkit

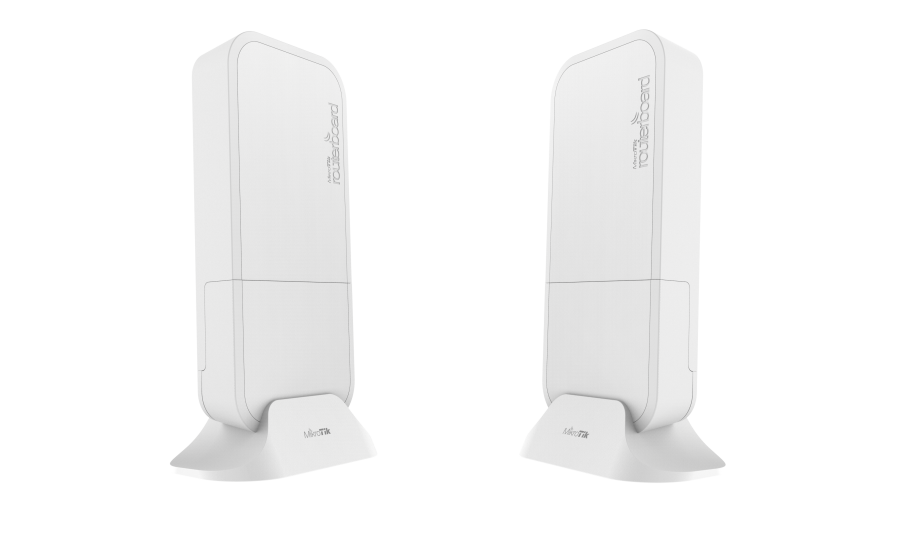

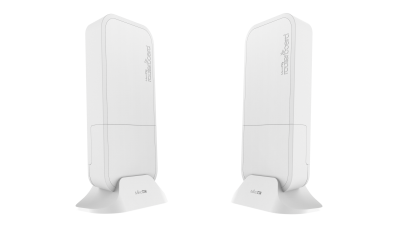

MikroTik RBwAPG-60adkit(Wireless Wire) is a wireless bridge solution operating in the 60 GHz frequency band, providing gigabit-speed full-duplex connectivity. This kit consists of two pre-paired wAP 60G devices and offers a wireless connection instead of an Ethernet cable.

🔧 Technical Specifications

• Product CodeRBwAPG-60adkit

• İşlemciIPQ-4019, 4-core, 716 MHz

• RAM: 256 MB

• Depolama: 16 MB FLASH

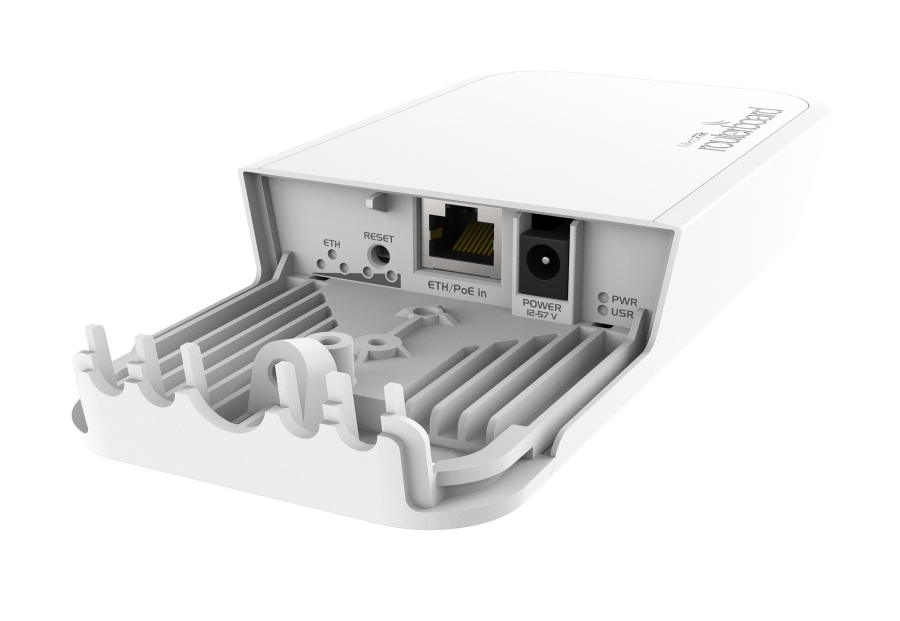

• Ethernet Ports1 x 10/100/1000 Mbps

• Wireless Connection60 GHz 802.11ad

• AntenPhased array 60° beamforming

• PoE Input802.3af/at compliant, 12–57 V DC

• Maximum Power Consumption5 W

• Boyutlar185 x 85 x 30 mm

• Operating Temperature-40°C to +70°C

• RouterOS License Level3

• IP CertificateIP55

• SertifikalarCE, FCC, IC, EAC, RoHS

• MTBFApproximately 200,000 hours (at 25°C)

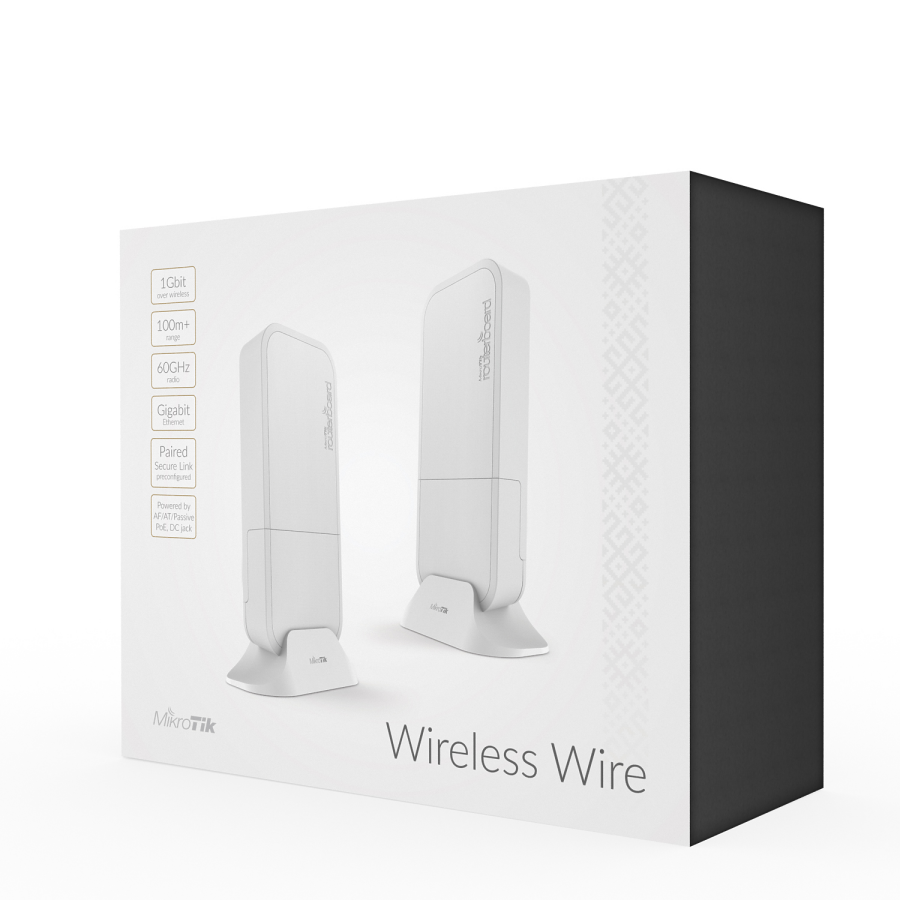

📦 Box Contents

• 2 x wAP 60G device (pre-paired)

• 1 x PoE injector (Gigabit)

• 1 x 24 V 0.38 A power adapter

• 1 x Wall mounting kit

• 2 x Pole mounting strap

• 2 x Table stand

📡 Connection Features

• Connection Type: Point-to-Point (PtP)

• Data Rate: Full duplex 1 Gbps

• Maximum Distance: Up to 200 meters

• Şifreleme: AES encryption

• Frequency Band: 60 GHz (WiGig)

• Useful Features:

  • Unaffected by the Wi-Fi spectrum.

  • It can pass through window glass (depending on the type of glass).

  • Reliable connection in complex Wi-Fi environments​

🧰 Usage Scenarios

• Gigabit Ethernet Connection: In cases where establishing a wired connection is difficult or expensive, such as building connections or between remote offices.

• Short Distance Connections: It is ideal for high-speed data transmission over distances of up to 200 meters.

• Complex Environments: In areas with heavy Wi-Fi traffic, it provides a cleaner and more stable connection thanks to the 60 GHz band.
