RBSXTG-5HPnD-HGr2

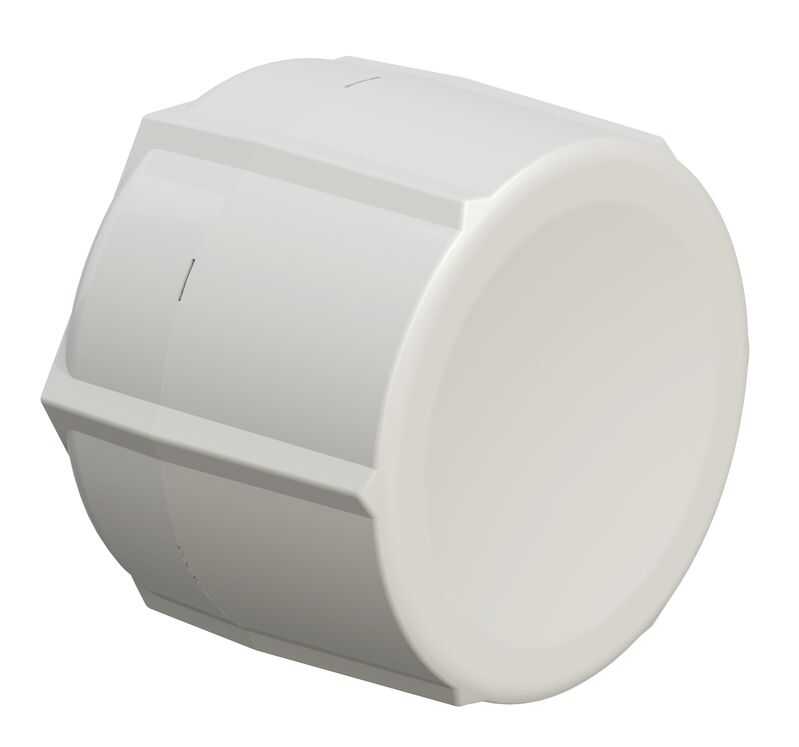

MikroTik RBSXTG-5HPnD-HGr2, also known asSXT HG5, it is a high-gain and high-power outdoor wireless device. It operates in the 5 GHz band and is ideal for point-to-point (PtP) connections, backhaul solutions, and remote client (CPE) applications thanks to its integrated 17 dBi panel antenna.

🔧 Technical Specifications

• Model Code: RBSXTG-5HPnD-HGr2

• İşlemci: Atheros AR9344, 600 MHz, 1 core

• RAM: 64 MB

• Depolama: 128 MB NAND Flash

• Operating System: RouterOS (License Level 4)

• Boyutlar: 140 x 140 x 100 mm

• Ağırlık: Approximately 380 g

• Operating Temperature: Between -30°C and +80°C

• MTBF: Approximately 100,000 hours @ 25°C

📡 Wireless Features

• Frequency Band: 5 GHz (4920–6100 MHz; may vary depending on country regulations)

• Wireless Standards: 802.11a/n (Wi-Fi 4), 2x2 MIMO

• Maximum Data Rate: 300 Mbps

• Antenna Gain: 17 dBi (±2 dB)

• Beam Width: 24°

• Polarizasyon: Pair (vertical and horizontal)

• Inter-Port Isolation: -30 dB

• VSWR: 1.43

• Wireless Chipset: AR9344

📶 Wireless Performance

🔌 Connection and Power

• Ethernet Port: 1 x 10/100/1000 Mbps Gigabit Ethernet

• USB Port: 1 x USB 2.0 Type-A (for example, for 3G/4G modem)

• Power Input: 6–30 V Passive PoE

• Maximum Power Consumption:11 W

• Soğutma: Pasif

🛠️ Other Features

• LED Indicators: Power, Ethernet, and 5 wireless signal level LEDs.

• Ekstralar: Reset button, beeper, voltage and temperature monitor, 16 kV ESD protection

• Case Features: Weather-resistant, suitable for outdoor use.

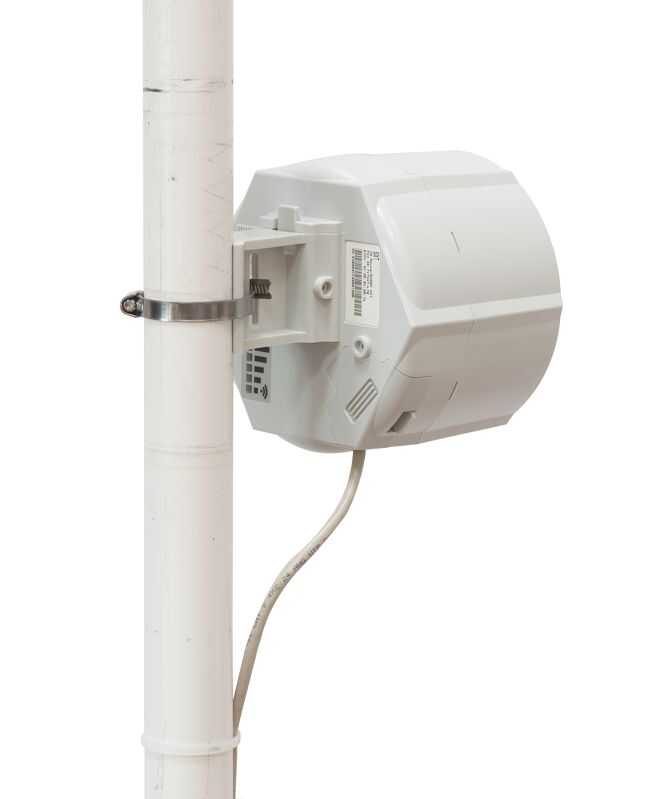

• Montaj: Integrated mounting ring and hose clamp for direct installation.

• Package Contents:

  • SXT HG5 device

  • 24V 0.8A power adapter

  • Gigabit PoE injector

  • Assembly apparatus
