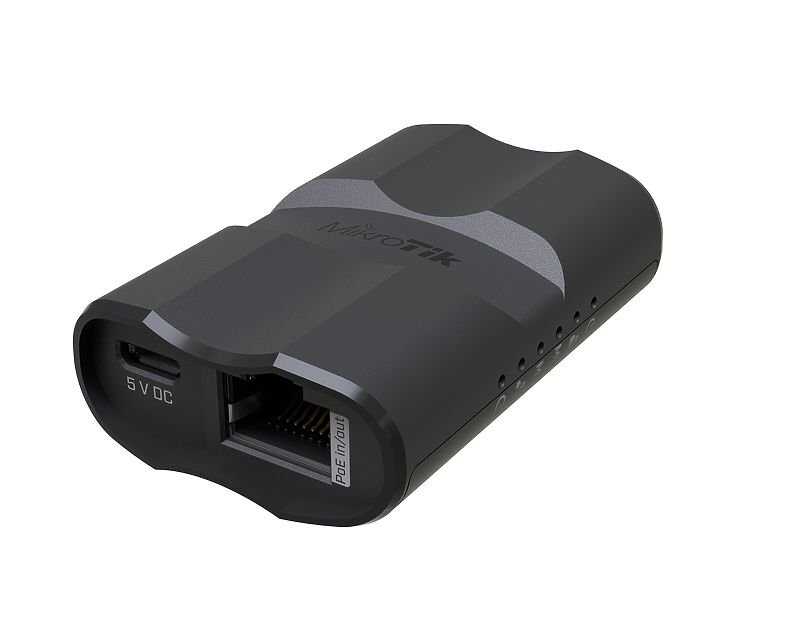

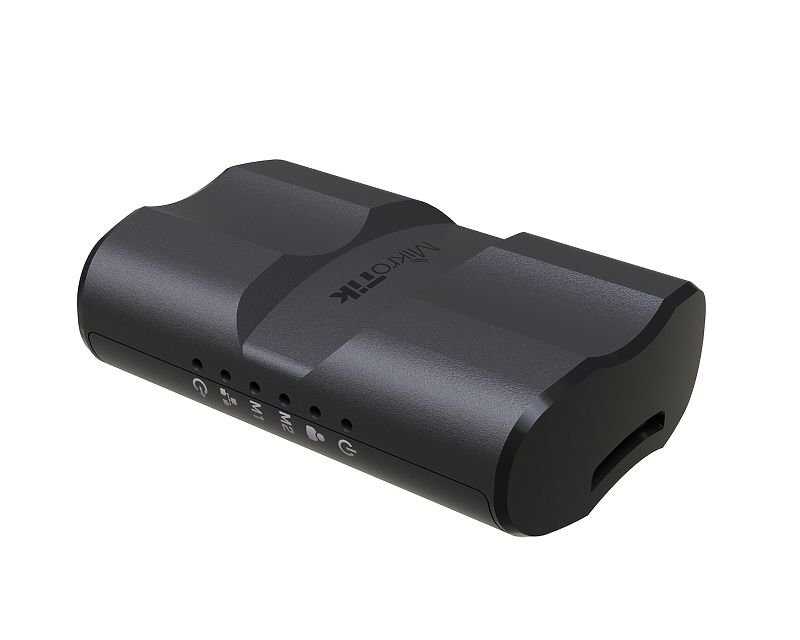

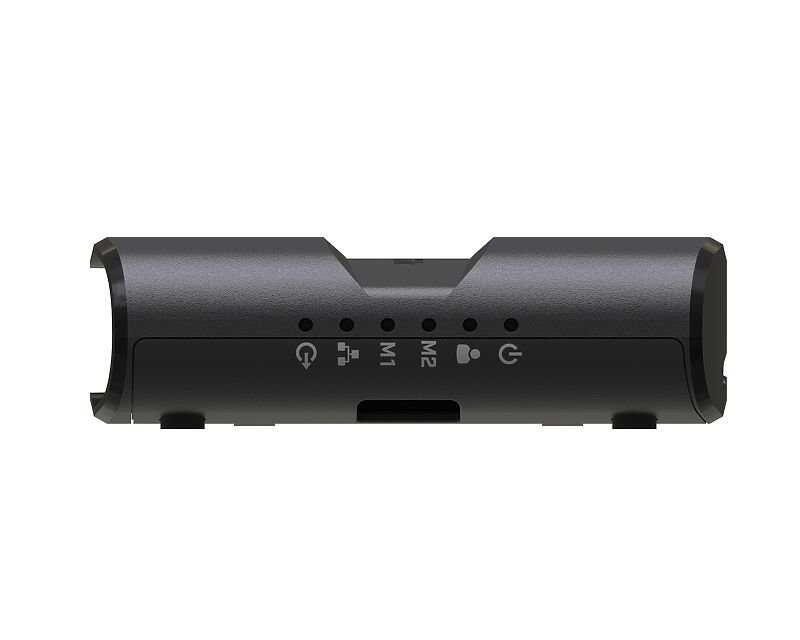

MikroTik RBMQS(Mobile Quick Setup) is a compact Wi-Fi interfaced auxiliary device specifically designed for field installations and maintenance operations. The device allows you to manage MikroTik and other devices via a smartphone or tablet, even in environments without an Ethernet connection.
Product Code: RBMQS
İşlemci: ESP32, 160 MHz
Depolama: 2 MB flash memory
Ethernet Port: 1 × 10/100 Mbps RJ45
Wireless Connection: 2.4 GHz 802.11b/g/n (Wi-Fi 4)
Antenna Gain: 1.5 dBi (internal antenna)
Power Input:
MicroUSB 5 V (recommended power bank output >2.1 A)
Passive PoE, 5 – 30 V
PoE Output: Passive PoE, 12 V 400 mA (only when using USB 5 V input)
Maximum Power Consumption: 7 W (with additional devices), 1 W (device only)
Boyutlar: 40 x 64 x 21 mm
Operating Temperature: -20°C to +70°C
1 × MikroTik RBMQS device

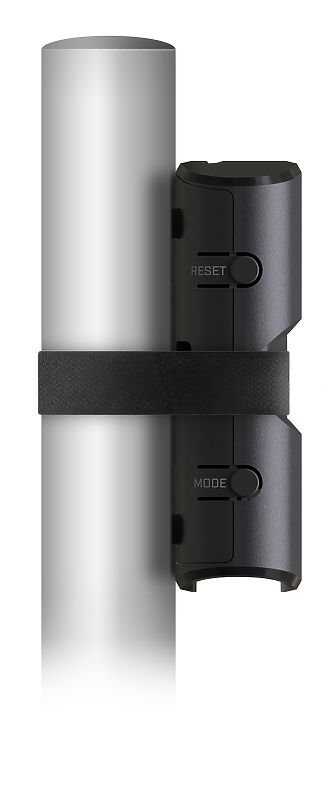

Assembly belt
Field Installations: It is ideal for the installation and basic configuration of CPE devices.
Maintenance and Diagnosis: With the PoE output, devices can be operated to perform maintenance and diagnostic procedures.
Temporary Access Point: It can be used as a temporary Wi-Fi access point for a limited number of clients.
Netinstall Support: It can be used to perform the Netinstall process on MikroTik devices.
