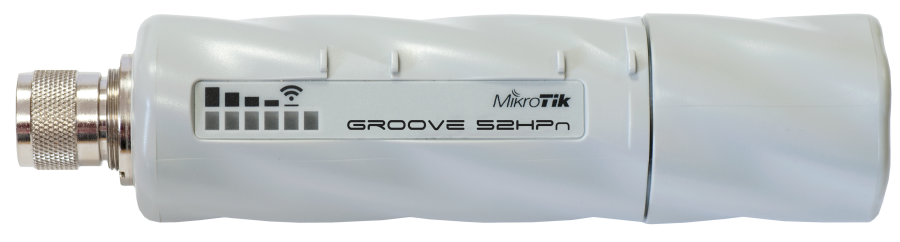

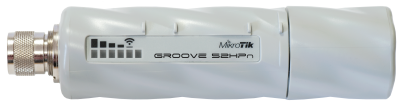

RBGrooveA-52HPn

MikroTik RBGrooveA-52HPn, is a device that provides reliable wireless connections in open-air environments with its compact structure and high output power. This device, capable of operating in the 2.4 GHz and 5 GHz frequency bands, is particularly ideal for point-to-point (PtP) and point-to-multipoint (PtMP) connections.​

🔧 Technical Specifications

• Model Code: RBGrooveA-52HPn

• İşlemci: Atheros AR9342, 600 MHz, 1 core

• Mimari: MIPSBE

• RAM: 64 MB

• Depolama: 16 MB FLASH

• Operating System: RouterOS v6 (License Level 4)

• Boyutlar: 177 x 44 x 44 mm

• Ağırlık: 193 g

• Operating Temperature: -40°C to +70°C

• PoE Input: Passive PoE, 9–30 V DC

• Maximum Power Consumption6 W

📡 Wireless Features

• Frequency Bands: 2.4 GHz (2412–2484 MHz) and 5 GHz (5150–5875 MHz)

• Wireless Standards: 802.11a/b/g/n

• Chain Count: 1x1 MIMO

• Output Power: 27 dBm (500 mW)

• Antenna Connection: N-male connector

• Antenna Gain:

  • 2.4 GHz: 6 dBi

  • 5 GHz: 8 dBi​

🔌 Connection and Power

• Ethernet Port: 1 x 10/100 Mbps (Auto-MDI/X)

• PoE Support: Yes (PoE-in)

• Power Input: 9–30 V DC (via PoE)

• Maximum Power Consumption6 W

📦 Package Contents

• RBGrooveA-52HPn device

• Mounting rings

• PoE adapter

• Power adapter

• Omni-directional antenna (6 dBi 2.4 GHz, 8 dBi 5 GHz)​

🎯 Areas of Use

• Point-to-Point (PtP) Connections: It is suitable for long-distance PtP connections due to its high output power and wide frequency support.

• Point-to-Multipoint (PtMP) Connections: It provides high-performance communication in scenarios where multiple devices need to be connected.

• Open Area Applications: Thanks to its weather-resistant structure, it provides reliable wireless connections in open areas.
