RB912UAG-6HPnD-OUT

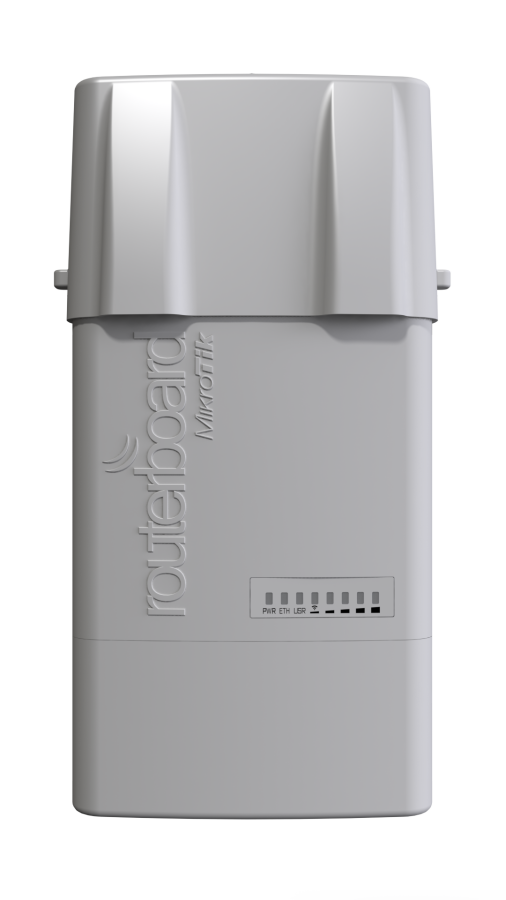

​MikroTik RB912UAG-6HPnD-OUT, also known asBaseBox 6, is a high-power wireless access point designed for outdoor use. This device, built on the RB912 platform, operates in the 6 GHz frequency band and is particularly suitable for professional network installations that use licensed spectrum.

🔧 Technical Specifications

• Product Code: RB912UAG-6HPnD-OUT

• İşlemci: AR9342, single-core, 600 MHz

• RAM: 64 MB

• Depolama: 128 MB NAND Flash

• RouterOS License: Level 4

• Boyutlar: 246 x 135 x 50 mm

• Operating Temperature: -40°C to +70°C

• Mean Time Between Failures (MTBF): Approximately 100,000 hours @ 25°C​

📡 Wireless Features

• Frequency Range: 5.9 – 6.4 GHz (for licensed use only)

• Standartlar: 802.11a/n (Wi-Fi 4)

• Maximum Data Rate: 300 Mbit/s

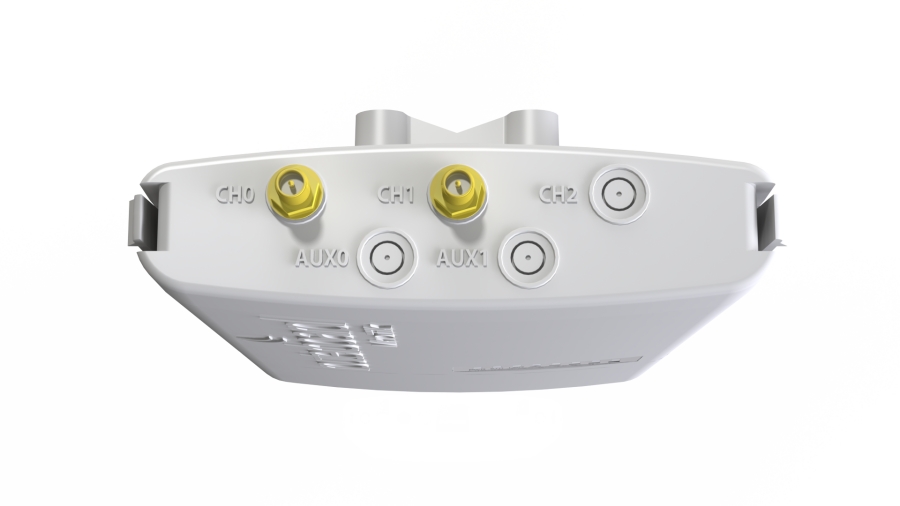

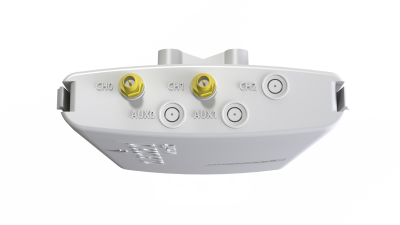

• Antenna Connections: 2 RP-SMA connectors (3 additional connection points can be added)

• Wireless Chip: AR9342

• Chain Count: 2 (2x2 MIMO)​

🔌 Connection and Power

• Ethernet: 1 x 10/100/1000 Mbps Gigabit Ethernet port

• PoE Input: Passive PoE (10–30 V)

• Maximum Power Consumption23 W

• USB: 1 x USB Type-A (max. 1 A)

• miniPCIe Slot: 1 unit (for additional wireless interface or 3G/4G modem)

• SIM Slot: 1 piece Mini SIM (for modem support)​

🛠️ Physical and Other Properties

• Kasa: IP54 certified, water and dust resistant outdoor enclosure

• Soğutma: Pasif

• Embedded Features: PCB temperature monitor, voltage monitor, beeper

• Montaj: Direct mounting ring and DIN rail mounting (K-27) are included.​

📦 Box Contents

• RB912UAG-6HPnD-OUT device

• 24V 1.2A power adapter

• Gigabit PoE injector

• DIN mounting fixture (K-27)

• Metal mounting ring
