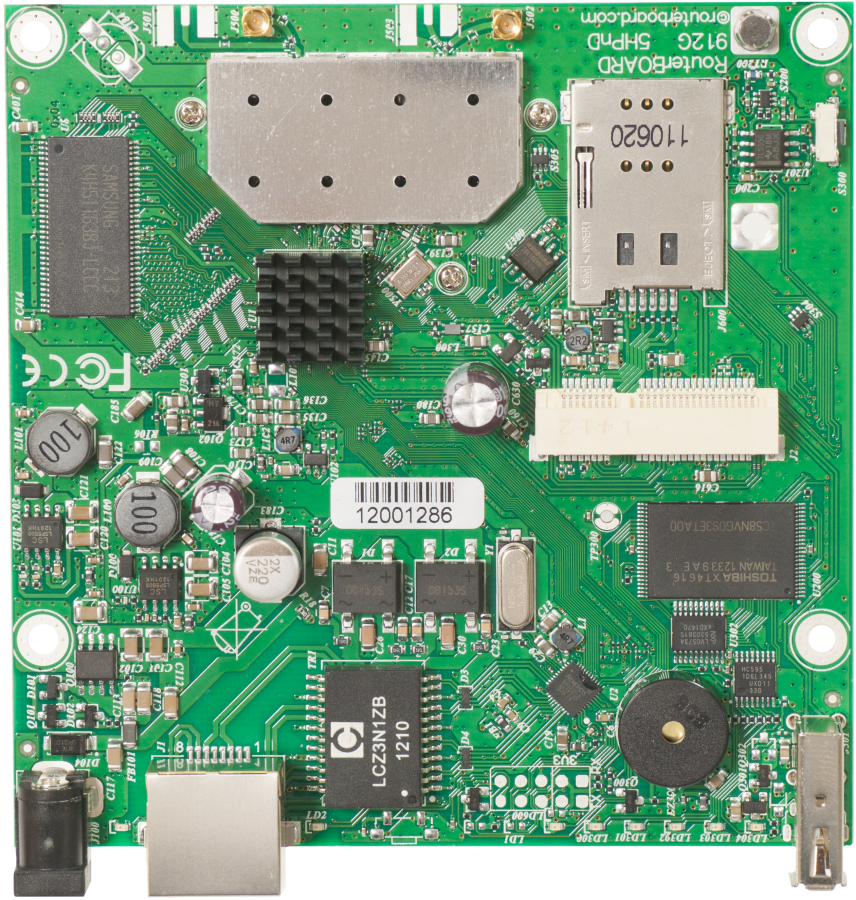

RB912UAG-5HPnD

MikroTik RB912UAG-5HPnD, also known asBaseBox 5also known as, is a high-power 5 GHz wireless access point and CPE (Client Premises Equipment) solution designed for outdoor use. This device is suitable for professional users seeking high performance and durability, especially in wireless network infrastructures.​

🔧 Technical Specifications

• İşlemci: Atheros AR9342, 600 MHz, 1 core

• RAM: 64 MB DDR2

• Depolama: 128 MB NAND

• Ethernet Port: 1 x Gigabit Ethernet (Auto-MDI/X)

• Wireless Features:

  • 802.11a/n, 5 GHz

  • 2x2 MIMO (two data streams)

  • 2 x RP-SMA antenna connectors

  • Maximum output power: 30 dBm (1000 mW)

  • Supported frequency range: 4900–5920 MHz

• Expansion Slots:

  • 1 x miniPCIe slot (for additional wireless card or 3G/4G modem)

  • 1 x USB 2.0 port (for 3G/4G modem or additional storage)

• Power Input: 8–30V DC, PoE (Power over Ethernet) support

• Operating Temperature: -40°C to +70°C

• Boyutlar: 246 x 135 x 50 mm

• RouterOS License: Level 4

• Sertifikalar: CE, FCC, IC, EAC, ROHS​

📦 Box Contents

• RB912UAG-5HPnD device

• 24V 0.8A power adapter

• PoE injector

• DIN rail mounting set

• Wall mounting set

• Protective cable kit​

✅ Usage Scenarios

• Backhaul Connections: It is ideal for establishing high-speed wireless connections between buildings.

• Access Point (AP): It can be used as a powerful access point to extend the coverage area.

• CPE (Customer Premises Equipment): It can be used by internet service providers to serve end users.

• 3G/4G Backup: Internet connection backup can be provided with a mobile data card.
