PBE-5AC-400

📡 Ubiquiti PBE-5AC-400 – Technical Specifications

PowerBeam 5AC 400, Ubiquiti'sairMAX ac seriesbelonging to apoint-to-point (PtP) ve point-to-multipoint (PtMP) uygun It is an outdoor wireless transmission device.Thanks to its high-directional antenna, it is ideal for long-distance connections.

📶 Wireless Features

• Frequency Range:5.150 – 5.875 GHz(variable, there may be restrictions depending on the region)

• Wi-Fi Standard:802.11ac(Optimized with the airMAX AC protocol)

• Modülasyon:256QAMuntil

  • TDMATime Division Multiple Access (airMAX protocol)

• Channel Width:10, 20, 30, 40, 50, 60, 80 MHz (compatible with airMAX AC)

• Data RateTheoretically450+ Mbpsup to actual throughput (depending on the application)

• MIMO Support:2x2 MIMO

📡 Antenna Specifications

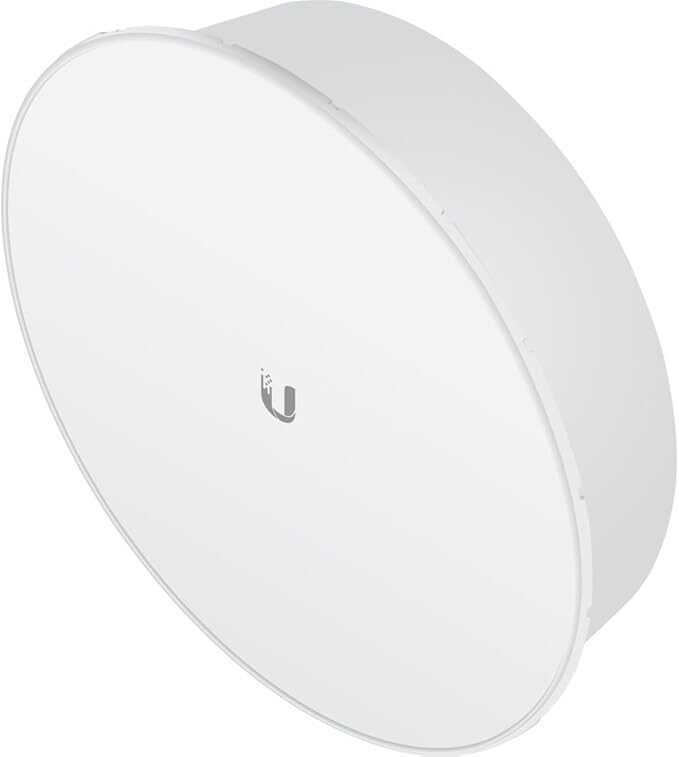

• Antenna TypeHigh-gain integrated parabolic dish antenna

• Antenna Diameter:400 mm(approximately 40 cm)

• Gain:25 dBi(In the 5 GHz band)

• Beam Width:Yaklaşık 5° – 6°(high directivity)

🔌 Hardware Specifications

• Ethernet Port:1x 10/100/1000 Mbps RJ45 (Gigabit)

• PoE Support:24V passive PoERemove the adapter from the box.

• Power Consumption:Maksimum 8.5W

• İşlemciAtheros MIPS 74Kc, 720 MHz

• RAM:128 MB DDR2

• Flash:8 MB

🛠️ Physical Properties

• Device Dimensions:420 x 420 x 230 mm

• Ağırlık:1.753 kg(including bracket)

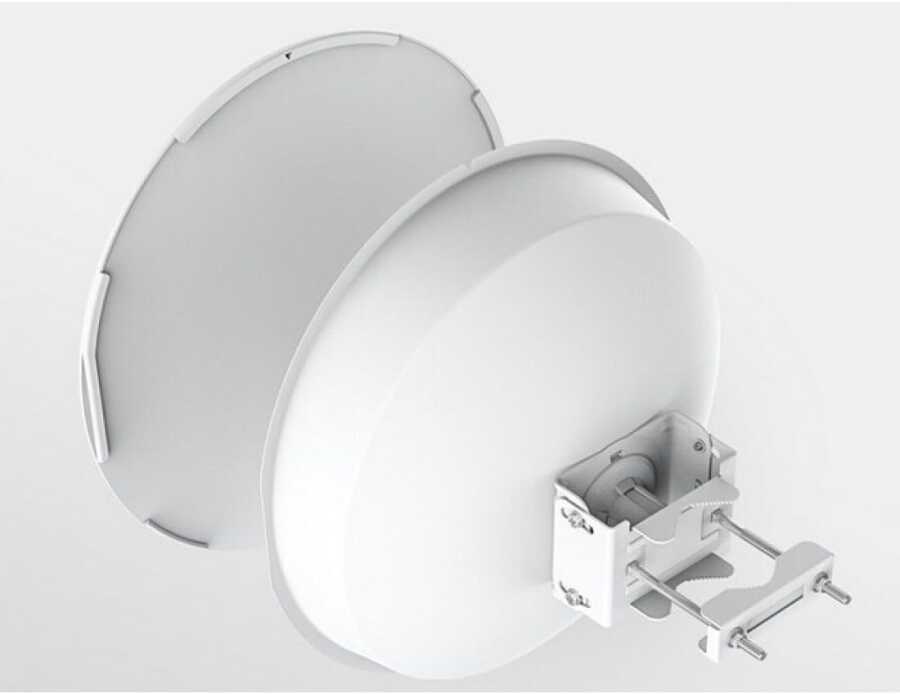

• MontajIt includes a direct mounting apparatus and alignment screw system.

• Operating Temperature-40°C to +70°C

• Wind Resistance:Up to 200 km/h

• IP Protection Class:IP55+- suitable for outdoor use

🌐 Management and Software Features

• Management InterfaceWeb-based GUI

  • airOS 7

  • Remote management with UNMS/UISP

• Supported Features:

  • airMAX AC

  • QoS, VLAN, SNMP

  • Frequency analyzer, throughput test

  • GPS Sync (only in GPS-equipped variants)

📦 Box Contents

• PBE-5AC-400 device

• Parabolic antenna reflector

• Direct mounting kit

• 24V, 0.5A PoE adapter

• Ethernet cable clamps

🎯 Areas of Use

• Long-distance wireless bridging (point-to-point)

• WISP backbone connections (backhaul)

• Rural network access

• Building – building wireless connection solutions
