RBLDF-2nD

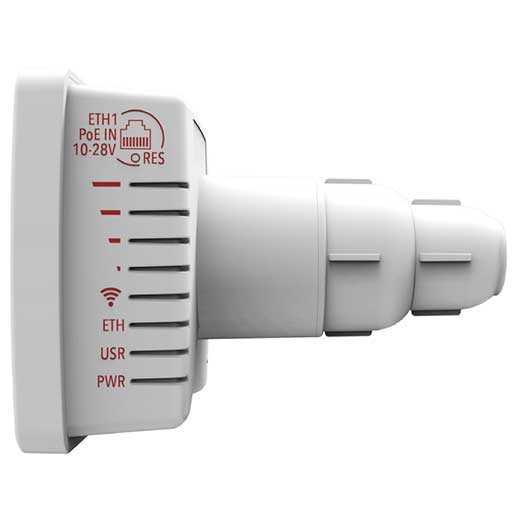

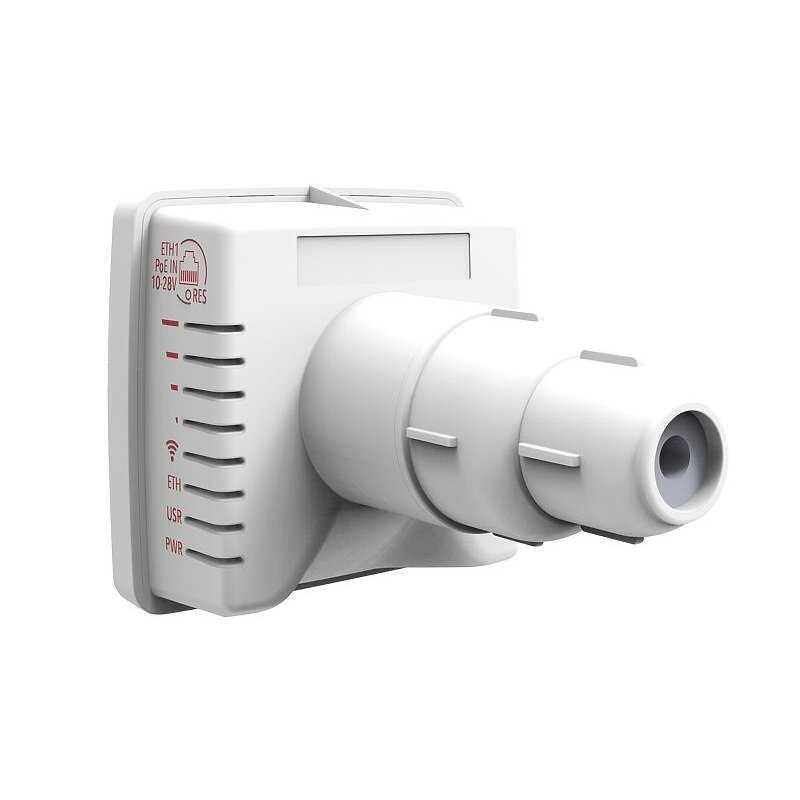

MikroTik RBLDF-2nD, that isLDF 2It is a compact outdoor wireless device designed to operate in the 2.4 GHz frequency band for use with satellite dish antennas. With the "Lite Dish Feed" (LDF) concept, it is easily mounted on standard 40 mm diameter offset satellite dishes and provides long-distance connections by utilizing the dish's reflective properties.

📡 Technical Specifications

• Model Code: RBLDF-2nD

• Mimari: MIPSBE

• İşlemci: Qualcomm Atheros QCA9533, 650 MHz

• RAM: 64 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (License Level 3)

• Boyutlar: 84 x 84 x 115 mm

• Operating Temperature: Between -40°C and +70°C

• MTBF: Approximately 100,000 hours @25°C

🌐 Wireless Features

• Frequency Band: 2.4 GHz

• Wireless Standards: 802.11b/g/n (Wi-Fi 4)

• Maximum Data Rate: 300 Mbps

• MIMO: 2x2 (Dual Chain)

• Wireless Chip: QCA9533

• Antenna Gain: 10 dBi (internal)

• Antenna Beam Width: 60°

🔌 Power and Connection

• Ethernet Port: 1 x 10/100 Mbps Fast Ethernet (Auto-MDI/X)

• Power Input: 10–28 V Passive PoE

• Maximum Power Consumption:7 W

• Soğutma: Pasif

📦 Box Contents

• LDF 2 device

• 24V 0.38A power adapter

• PoE injector

Not: The antenna (dish) is not included in the box contents.

🎯 Usage Scenarios

• Point to Point (PtP) Connections: When used with a satellite dish, high-speed connections up to 30 km are possible.

• Use as a Client Device (CPE): It is an effective solution on the customer side for wireless internet service providers (WISP).

• Internet Access in Rural Areas: It is an ideal solution for providing internet access in rural areas.
