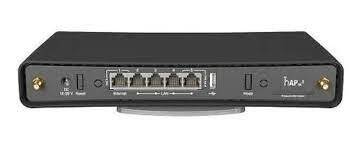

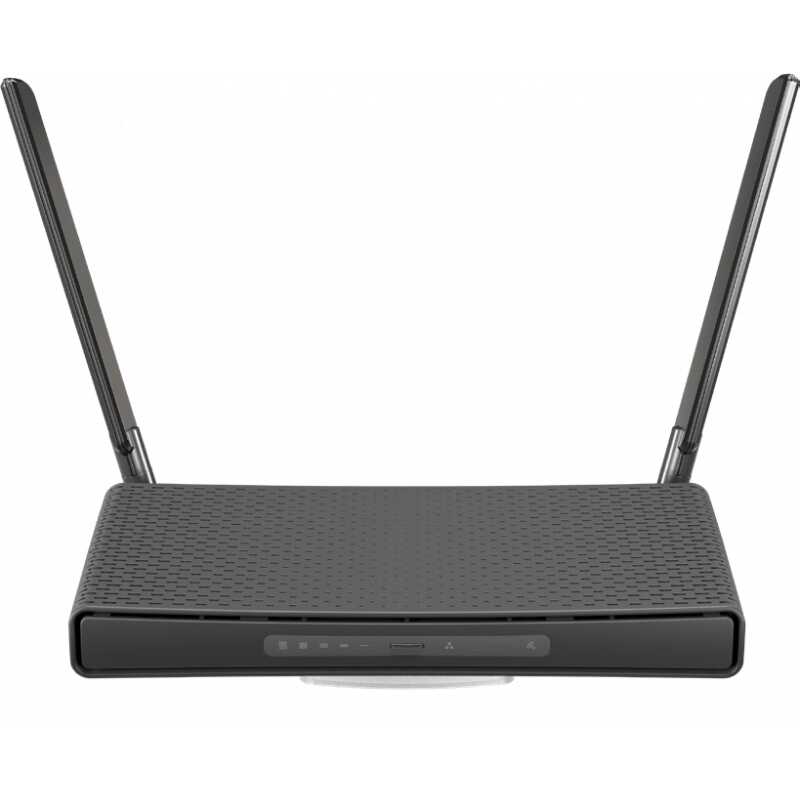

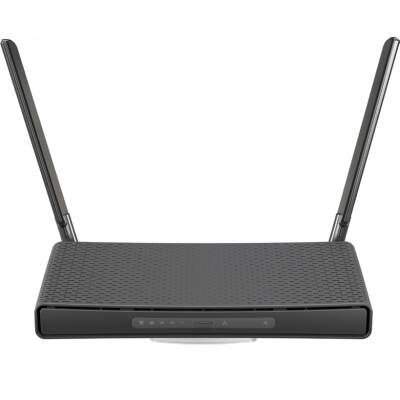

MikroTik RBD53iG-5HacD2HnD, widely known ashAP ac³The model, known as such, is a powerful, versatile, and affordable wireless router solution for homes and small offices. It is equipped with a 5 Gigabit Ethernet port, high-performance Wi-Fi 5 (802.11ac) support, and PoE features.
Frequency Bands: 2.4 GHz and 5 GHz (simultaneous operation)
Wireless Standards:
2.4 GHz: 802.11b/g/n (Wi-Fi 4)
5 GHz: 802.11a/n/ac (Wi-Fi 5)
Maximum Data Rates:
2.4 GHz: 300 Mbps
5 GHz: 867 Mbps
Antenler:
External high-gain antennas
2.4 GHz: 3 dBi
5 GHz: 5.5 dBi
MIMO: 2x2 (double-stranded for each band)
WLAN Chipset: Qualcomm Atheros IPQ4019
WLAN Driver: ath10k-ct
İşlemci: Qualcomm Atheros IPQ4019, quad-core, 716 MHz
RAM: 256 MB
Depolama:
128 MB NAND flash
Full-size USB 2.0 port (for extra storage)
Ethernet Ports: 5 x Gigabit Ethernet (10/100/1000 Mbps)
Port 1: PoE input (18–28 V)
Port 5: PoE output (max. 0.5 A)
Power Input:
PoE (18–28 V)
DC Jack (12–28 V)
Maximum Power Consumption: 30 W
Soğutma: Pasif
Operating Temperature: -40°C to +70°C
Boyutlar: 251 x 129 x 39 mm
MTBF: Approximately 100,000 hours @25°C
Operating System: MikroTik RouterOS (License Level 5)
Management Features: Central AP management with CAPsMAN support, VLAN, VPN, firewall, user access control, and other RouterOS features
Default IP: 192.168.88.1 (Username: admin, password: none)
RBD53iG-5HacD2HnD device
5V 2.5A power adapter

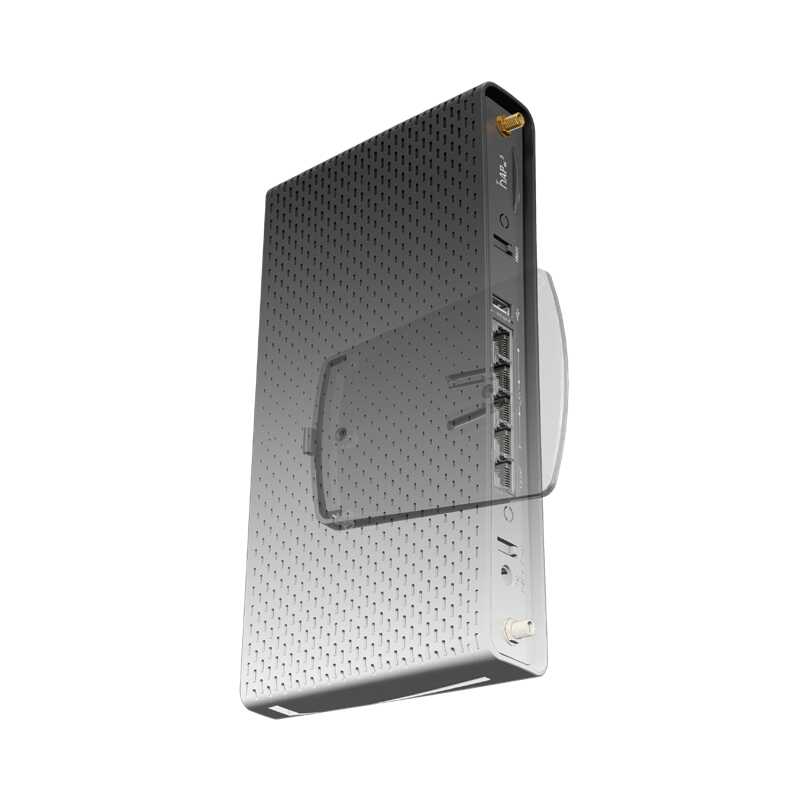

Mounting kit (for wall mounting)
User manual
hAP ac³ is ideal for meeting high-performance networking needs in homes and small offices. Centralized management of multiple devices is possible thanks to CAPsMAN support. PoE support allows the device to both receive power and supply power to other devices, offering installation flexibility.
