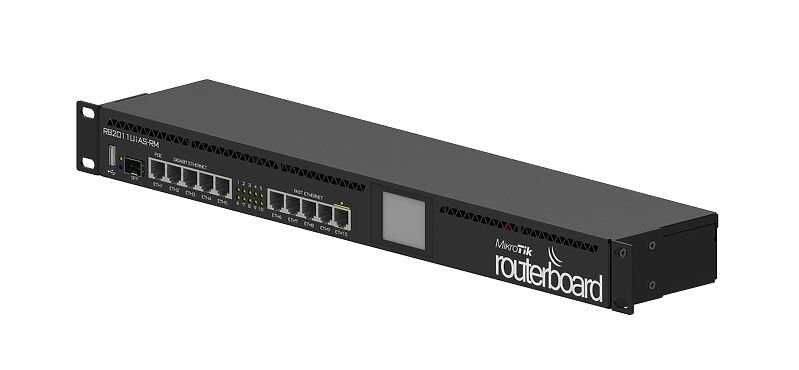

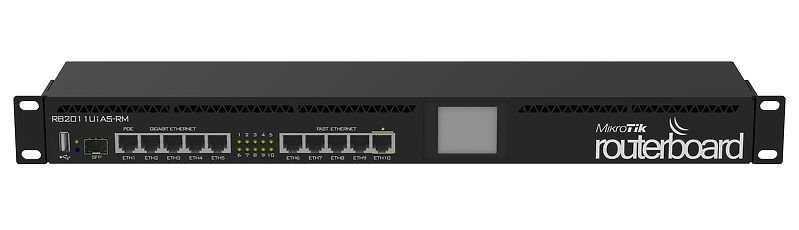

MikroTik RB2011UiAS-RM, The RouterBOARD series is a versatile and affordable router in the 1U rackmount form factor. This device, ideal for small and medium-scale networks, is equipped with a RouterOS L5 license and extensive connectivity options.
İşlemci: Atheros AR9344, 600 MHz, single-core
RAM: 128 MB DDR3
Depolama: 128 MB NAND flash
Ethernet Ports:
5 x 10/100 Mbps Fast Ethernet
5 x 10/100/1000 Mbps Gigabit Ethernet
SFP Port: 1 x SFP (SFP module not included)
USB Port: 1 x USB 2.0
Serial Port: 1 x RJ45 serial port
LCD Screen: Touch LCD screen
PoE Output: PoE output up to 500 mA via Port 10
Power Input: 8–30 V DC (PoE or DC jack)
Power Consumption: Maximum 6 W
Boyutlar: 214 mm x 86 mm (PCB)
Operating Temperature: -40°C to +60°C
Montaj: 1U rackmount, mounting kits included
RouterOS L5 License: It supports dynamic routing, VPN, hotspot, firewall, QoS, MPLS, and more.
SFP Support: Expandable with SFP modules for fiber connections.
PoE Output: Port 10 output over PoE can be used to power PoE-supported devices.
USB Port: The USB 2.0 port can be used for external storage or 3G/4G modems.
Serial Port: The device has an RJ45 serial port for configuration and maintenance.
RB2011UiAS-RM device
1U rackmount mounting kits
24V 0.8A power adapter
User manual
RB2011UiAS-RM is compatible with the following MikroTik SFP modules (modules not included):
S-85DLC05D– 1.25 Gbps, 850 nm, 550 m distance
S-31DLC20D- 1.25 Gbps, 1310 nm, 20 km distance
S-35/53LC20D- 1.25 Gbps, 1310 nm, 20 km distance
