RBD22UGS-5HPacD2HnD-15S

MikroTik mANTBox 52 15s(model code:RBD22UGS-5HPacD2HnD-15S), it is a high-performance wireless access point designed for outdoor use, featuring an integrated dual-band (2.4 GHz and 5 GHz) sector antenna. It is an ideal solution especially for point-to-multipoint (PtMP) connections.

📡 Technical Specifications

• Model Code: RBD22UGS-5HPacD2HnD-15S

• Mimari: ARM 32-bit

• İşlemci: Qualcomm IPQ-4019, 4 cores, 716 MHz

• RAM: 256 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (License Level 4)

• Boyutlar: 140 x 348 x 82 mm

• Operating Temperature: Between -40°C and +70°C

• MTBF: Approximately 200,000 hours @25°C

• IPsec Hardware Acceleration: Var

🌐 Wireless Features

• 2.4 GHz Band:

  • Standartlar: 802.11b/g/n (Wi-Fi 4)

  • Maximum Data Rate: 300 Mbps

  • MIMO: 2x2

  • Antenna Gain: 12 dBi5 GHz Band:

  • Standartlar: 802.11a/n/ac (Wi-Fi 5)

  • Maximum Data Rate: 867 Mbps

  • MIMO: 2x2

  • Antenna Gain: 15 dBi

• Total Wireless Speed: AC1200

🔌 Connection and Power

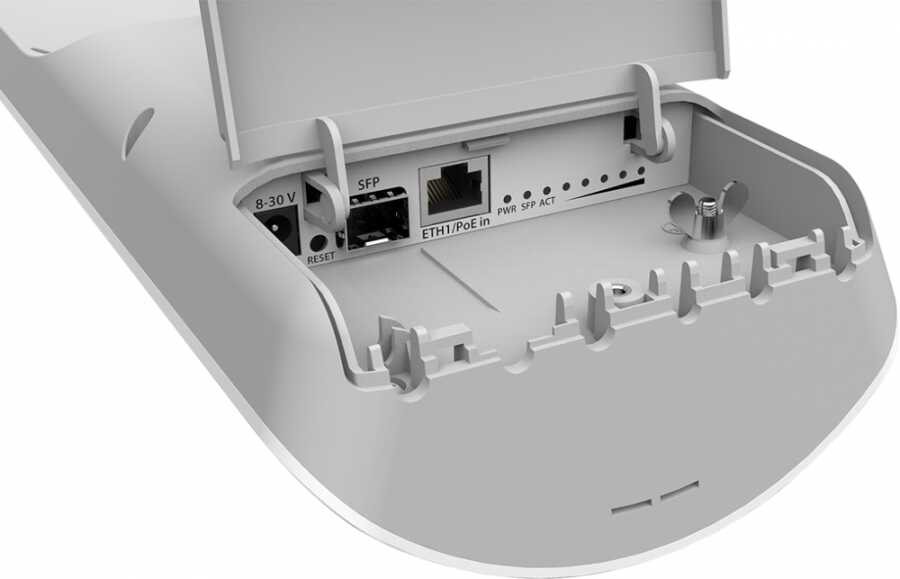

• Ethernet Port: 1 x 10/100/1000 Mbps (Gigabit Ethernet)

• SFP Port: 1 x 1G SFP (Fiber module input)

• USB Port: 1 x USB Type-A (1A output)

• Power Input: 802.3af/at supported PoE (12–57 V) and DC jack (12–57 V)

• Maximum Power Consumption:21 W

• Soğutma: Pasif

📦 Box Contents

• mANTBox 52 15s device

• Gigabit PoE injector

• Power adapter

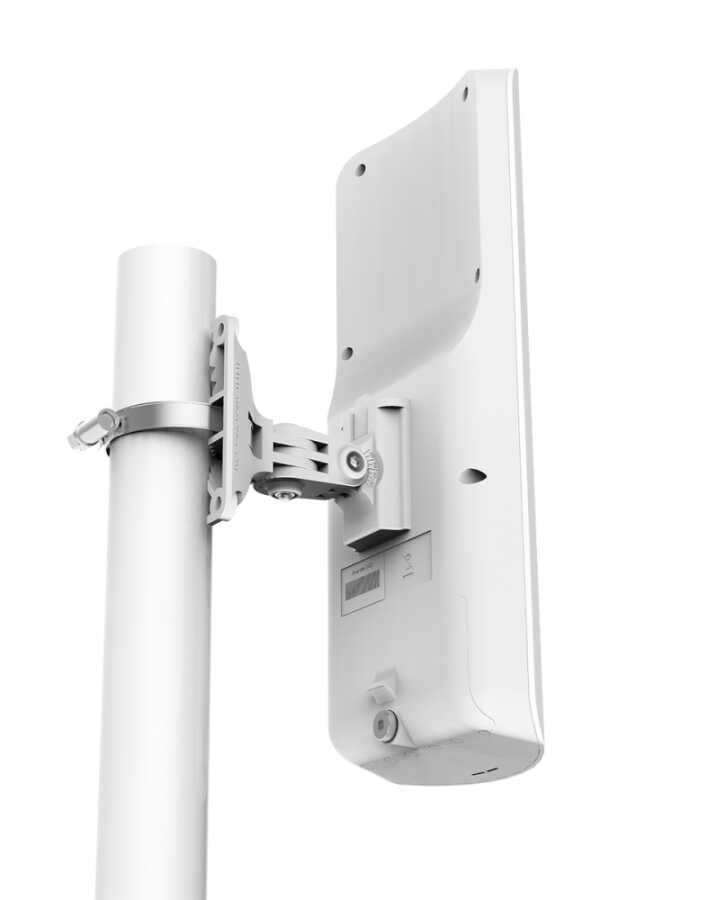

• Mounting accessories (including quickMOUNT pro)

🎯 Usage Scenarios

• Point to Multipoint (PtMP) Connections: It is suitable for long-distance connections with high data speed and output power.

• Outdoor Wireless Access: It provides reliable Wi-Fi access in gardens, campuses, or open areas.

• Industrial and Challenging Environments: It offers reliable performance in dusty and humid environments thanks to its durable design.

• Fiber Optic Connections: Integration with fiber optic networks is possible thanks to the SFP port.
