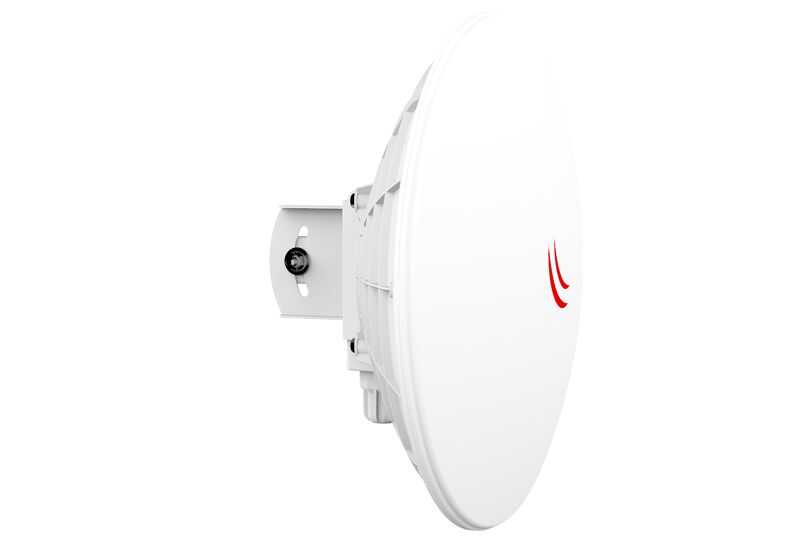

MikroTik DynaDish 5 Set, up to 8 kilometerspoint-to-pointIt is an ideal, stylish, and compact outdoor solution for establishing a wireless connection. This system, operating in the 5 GHz band,internet transfer, camera image transmission ve remote building connectionis extremely powerful and determined for.
🔧 Set Content:
2 × MikroTik DynaDish 5 (RBDynaDishG-5HacD)
2 × Pole mounting bracket
2 × PoE adapter (24V)
2 × Power cable
Installation guide
📡 Wireless Features
Frequency Band5 GHz (5150 – 5875 MHz)
Wireless Standard802.11a/n/ac (3x3 MIMO)
Antenna Gain: 25 dBi integrated directional antenna
Data Rate450+ Mbps (depending on conditions)
Maximum RangeUp to 8 KM (with direct line of sight)
PolarizasyonDual-Polarity (bidirectional broadcast)
🔌 Hardware Specifications
Ethernet Port1 × 10/100/1000 Mbps Gigabit Ethernet
CPU: 720 MHz processor
RAM: 128 MB
Depolama: 16 MB Flash
RouterOSLevel 3 license (ideal for CPE or bridge mode)
PoE Power Input: 11 – 60V supported
Power ConsumptionMax. 9 W
Case Structure: IP66 outdoor resistant, UV protected compact design
🛠️ Areas of Use
🏡 Internet bridge between site or building
🎥 Image transmission for IP camera systems
🛖 Providing wireless internet to rural settlements
🏢 Inter-building connections in corporate campuses
🚜 Extending the network to remote areas such as farms and country houses.
✅ Avantajlar
✔️ Strong and stable connection up to 8 KM.
✔️ High data transfer with AC technology
✔️ Single piece, compact, and aesthetic design
✔️ Full utilization of bandwidth thanks to the Gigabit port.
✔️ Detailed network management with MikroTik RouterOS (NAT, firewall, bridging)
✔️ Easy to install, can be quickly mounted to the pole.
📦 Installation Notes
Before installation, between devicesline of sight (LOS)should be provided. MikroTik'sWinbox veya WebFigQuick configuration can be done via the interface. Setup support can be provided separately if requested.
🎯 Who Is It Suitable For?
Those who install camera security systems
Managers of SME and corporate IT infrastructure
Service providers (WISP)
Those in need of internet in rural and semi-rural settlements
