CRS305-1G-4S+IN

MikroTik CRS305-1G-4S+IN, It is a compact and high-performance 10G SFP+ switch model by MikroTik. It is especially suitable for small offices, laboratories, and network testing environments.

⚙️ Technical Specifications

• Product Code: CRS305-1G-4S+IN

• İşlemci: Marvell 98DX3236, single-core, 800 MHz

• Mimari: ARM 32-bit

• RAM: 512 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (License Level 5) or SwOS (dual boot)

• Boyutlar: 141 x 115 x 28 mm

• Operating Temperature: Between -40°C and +70°C

• MTBF: Approximately 200,000 hours @25°C

🔌 Connection and Power

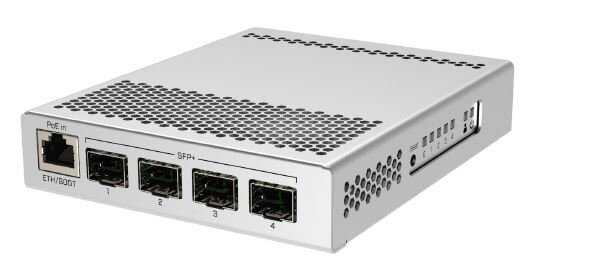

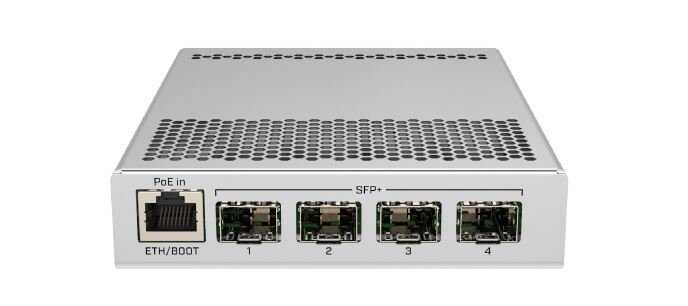

• Ethernet Port: 1 x 10/100/1000 Mbps RJ45 (for management or data transmission)

• SFP+ Ports: 4 x 10 Gbps (compatible with 1.25 Gbps SFP modules)

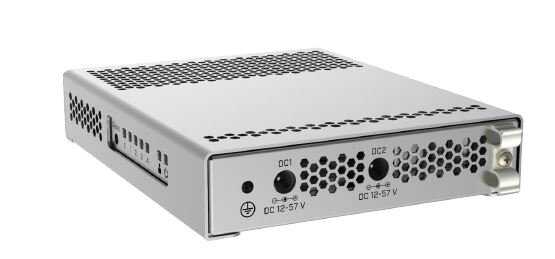

• Power Input:

  • 2 x DC jack (12–57 V)

  • 1 x PoE-in (passive or 802.3af/at, 12–57 V)

• Maximum Power Consumption: 12 W (up to 18 W with additional modules)

• Soğutma: No fan (silent operation)

📈 Performance

• Switching Capacity: 82 Gbps

• Maximum Data Transfer Rate: 41 Gbps

• Transmission Speed: 61 Mpps

🧰 Other Features

• Dual Boot: The option to choose between RouterOS or SwOS.

• Metal Case: Durable and compact design

• Assembly Options: Desktop or wall mounting
