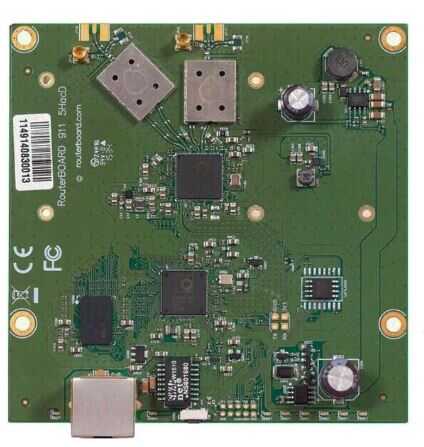

MikroTik RB911-5HacD(911 Lite5 ac) is a low-cost and compact CPE (Customer Premises Equipment) type RouterBOARD device that offers 802.11ac support in the 5 GHz band. It is specifically customized for 5 GHz wireless connections and is particularly suitable for use in Point-to-Point (PtP) and Point-to-Multipoint (PtMP) connections.
CPU: Qualcomm QCA9531, 650 MHz, 1 core
RAM: 64 MB DDR2
Depolama: 16 MB Flash
Ethernet Port: 1 x 10/100 Mbps
Kablosuz: 5 GHz, 2x2 MIMO, 802.11ac (Wi-Fi 5)
Wireless Chip: Qualcomm QCA9882
Frequency Range:
International model: 5150–5875 MHz
US model (RB911-5HacD-US): 5170–5250 MHz and 5725–5835 MHz (factory locked)
PoE Input: Passive PoE, 10–30 V DC
Maximum Power Consumption:7 W
Boyutlar: 113 x 89 mm
RouterOS License: Level 3
Operating Temperature: -40°C to +70°C
Sertifikalar: CE, FCC, IC, EAC, ROHS
Soğutma: Pasif
RB911-5HacD offers high data transmission speeds with 2x2 MIMO technology in the 5 GHz band. In MCS9 mode, a maximum data rate of 867 Mbps can be achieved. Below are some transmission power and reception sensitivity values:
| Modülasyon | Transmission Power (dBm) | Purchase Sensitivity (dBm) |
|---|---|---|
| 6 Mbps | 29 | -95 |
| 54 Mbps | 26 | -81 |
| MCS0 | 29 | -95 |
| MCS7 | 25 | -77 |
| MCS9 | 22 | -72 |
Backhaul Connections: It offers high speed and reliability for bridge connections.
CPE (Customer Premises Equipment): It can be used as the latest devices by the customer.
PtP and PtMP Networks: It can be easily configured with MikroTik's RouterOS software.
Outdoor Applications: It is resistant to outdoor conditions with an IP00 protection class.
