Input Voltage:220V AC single phase, between 176V AC and 290V AC
Frekans:45 Hz to 65 Hz
Output Voltage:Between -42V DC and -58V DC
Maximum Output Current:Total of 100A (maximum 25A for each output)
Output Power:Total 4800W (for 48V output)
Verimlilik:Over 96%
Protection Features:Overcurrent, overvoltage, overtemperature protection
Boyutlar:482 mm (W) × 255 mm (D) × 86.1 mm (H) (2U height)
Ağırlık:Approximately 10 kg
Mounting Type:19-inch rack or cabinet mounting
Soğutma:Natural cooling (does not include a fan)
Protection Class: IP20
Connection Type:Pre-entry, pre-exit (EPC5 connector)
Application Areas:Huawei MA5683T, MA5680T, MA5800-X7, X15, X17 OLT devices
Power Module:R4850G2 (1 or 2 units)

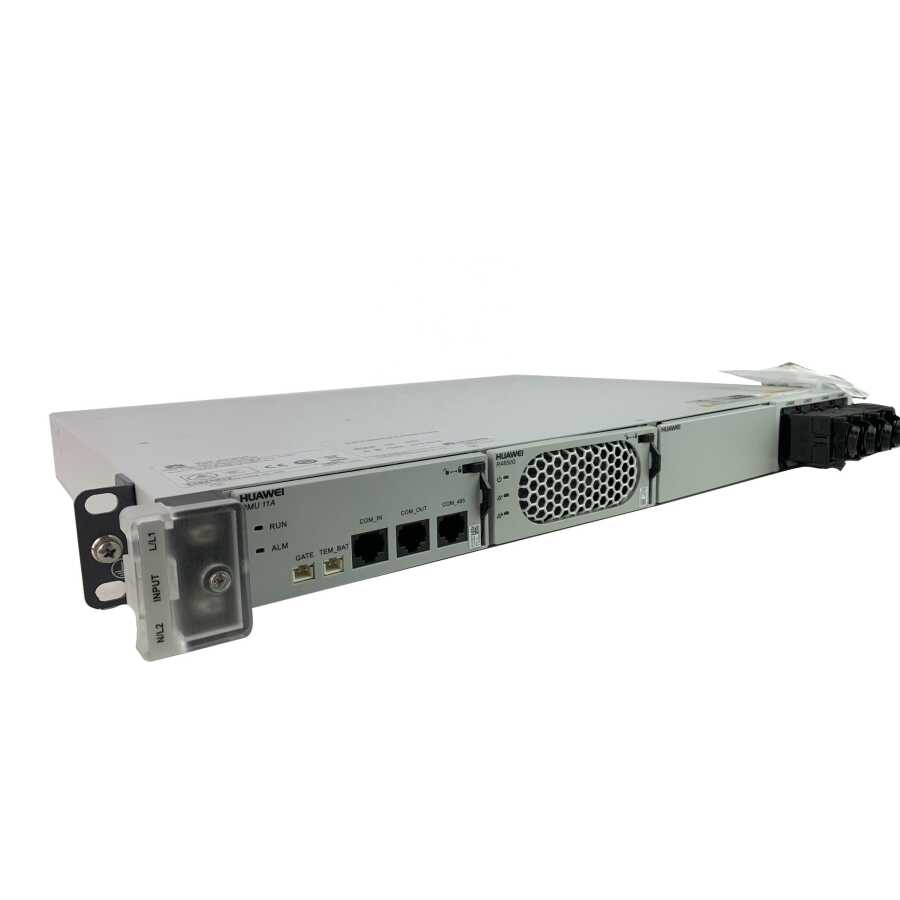

Control Module: PMU11A
Entry Links:OT terminal for AC power input
Exit Connections:For DC output, EPC5 connector
No-Load Power Consumption:Approximately 3000W (176–290V AC input)
High Efficiency:It provides energy savings with over 96% efficiency.
Wide Application Area:Huawei OLT devices are suitable for other communication infrastructures as well.
Advanced Protection Features:It provides protection against conditions such as overcurrent, overvoltage, and overtemperature.
Easy Installation:It offers flexible installation options with 19-inch rack or cabinet mounting.
Long-Lived:It provides reliability with a high MTBF (Mean Time Between Failures) value.
