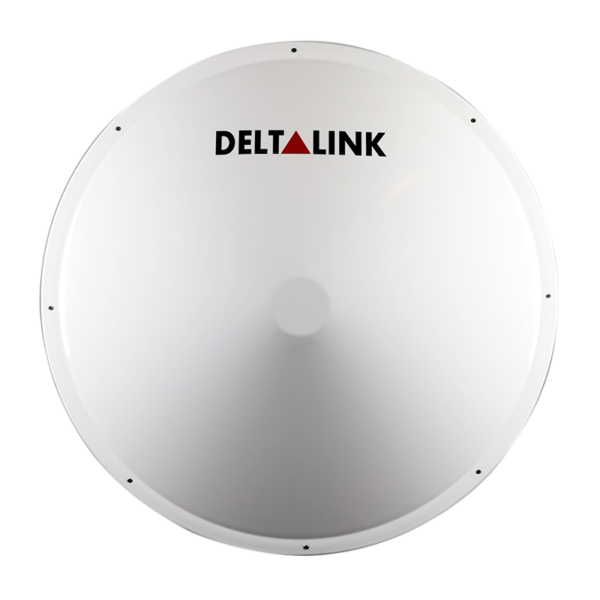

ANT‑5537N– Deltalink's "Super High Performance" category includesIt is a 5 GHz parabolic antenna with 37 dBi gain.It is designed for long-range, high-capacity wireless connections.
Frequency Range:4.8 – 6.1 GHz (5 GHz band)
Kazanç:37 dBi – The highest level of the "Super High Performance" class.
3 dB Beam Width:(estimated) 5–7° – provides high directional focus
VSWR:Approximately < 1.3:1 – good impedance match
Polarizasyon:Dual polarization support – Compatible with MIMO systems
Konnektör:2 × N‑Female ports
Side Lobe and Back Isolation:Low side lobe and high front-to-back ratio compliant with ETSI standards.
Max. Input Power:~100 W (typical)
Malzeme:Lightweight aluminum body, resistant to outdoor conditions.

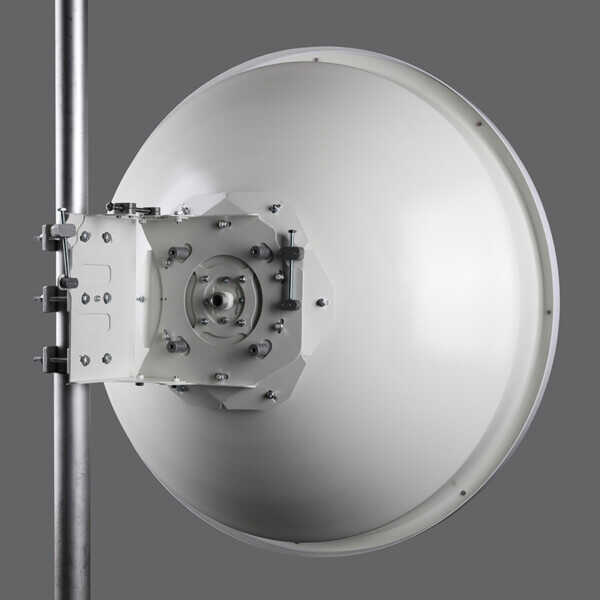

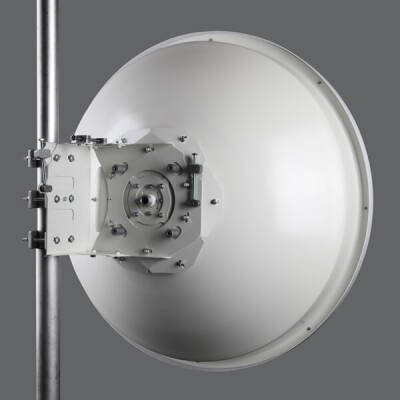

Montaj:It can be directly fixed to the pole with a bracket of 25–60 mm diameter.
Wind Resistance:Operating: ~170 km/h, survival: ~230 km/h
Temperature Range:–50 °C … +70 °C
Long Range PtP/PtMP Connections:It provides maximum coverage area and high signal directionality.
Dense RF Environments:High gain + low side lobe structure reduces signal interference.
Professional Network Infrastructures:It provides reliable performance on outdoor fixed network connections or operator networks.
ANT‑5537N, 37 dBiWith its gain and narrow beam structure, it offers an optimal solution for long-distance, high-performance connections in the 5 GHz band. Dual polarization support is suitable for MIMO applications and can be safely used in challenging open-field conditions.
