ANT-5531N/6 GHz

📡 Features

• Frequency Range:4.8–6.1 GHz (5 GHz band)

• Kazanç:~31 dBi – strong directional performance

• 3 dB Beam Width:~3.5° – narrow-focused signal

• VSWR:~1.4:1 – good impedance matching

• Empedans:50 Ω

• Max. Input Power:~25 W

• Konnektör:2×N-Female (dual pol.)

• Side Lobe and Isolation:ETSI EN 302.326‑3 compliant – high port-to-port isolation, front-back ~36 dB

⚙ Mechanical & Environmental Durability

• Çap:~750 mm

• Ağırlık:~5.8 kg (including bracket)

• Montaj:25–60 mm diameter pole, with precision pan/tilt mechanism

• Wind Load:Operation: ~130 km/h; Survival: 200 km/h

• Temperature Range:–50 °C … +70 °C

🎯 Areas of Use

• Long distanceIn PTP connections (>30–80 km)high performance available

• MIMO-supported linkI was ideal for installations, with a dual-polarized structure.

• It provides a clear signal by minimizing side lobes in noisy RF environments.

✅ General Evaluation

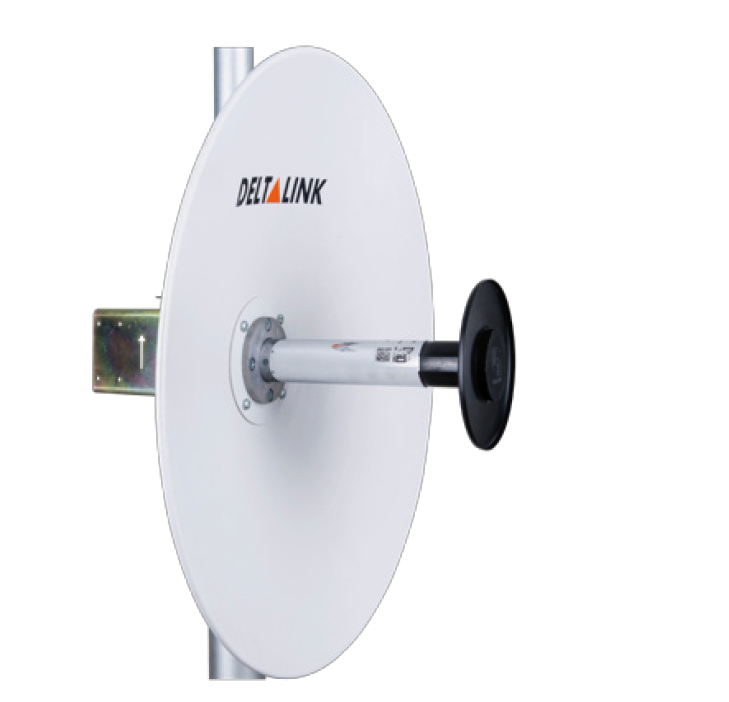

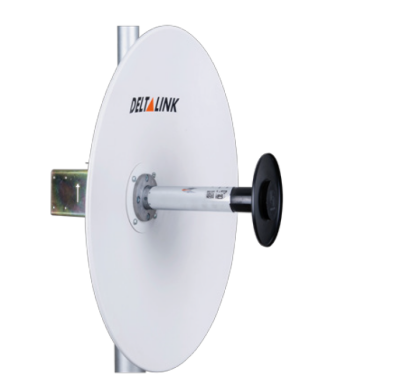

ANT‑5531N is a parabolic dish antenna that stands out with its high gain (31 dBi), narrow beam (3.5°), and robust structure. Especially forhives, ISP backhaul projects, and long-range wireless carrier systemsIt is suitable for. Thanks to its dual polarization feature and high isolation performance,A strong choice in MIMO applicationsdir.
