CRS518-16XS-2XQ-RM

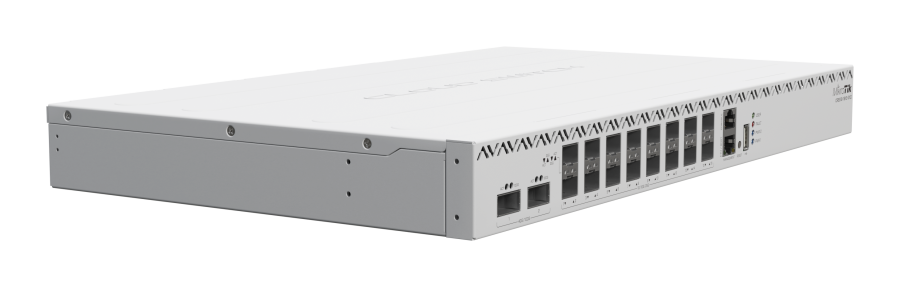

MikroTik CRS518-16XS-2XQ-RM, It is a high-capacity 1U rackmount switch model designed for corporate networks and data centers. This device stands out with its ports providing data transmission at speeds of 100 Gbps and 25 Gbps, and offers Layer 3 hardware acceleration support through the Marvell Prestera Aldrin2 switch chip.

🔧 Technical Specifications

• İşlemci: Qualcomm QCA9531, 650 MHz, 1 core

• RAM: 64 MB DDR2

• Depolama: 16 MB Flash

• Switch Chip: Marvell 98DX8525

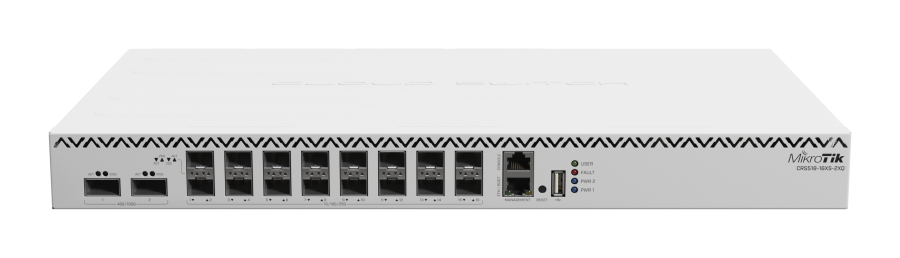

• Ethernet Ports:

  • 1 x 100 Mbps RJ45 (For Management)

  • 16 x 25G SFP28 (Compatible with 10G and 1G SFP devices)

  • 2 x 100G QSFP28

• USB Port: 1 x USB-A 2.0

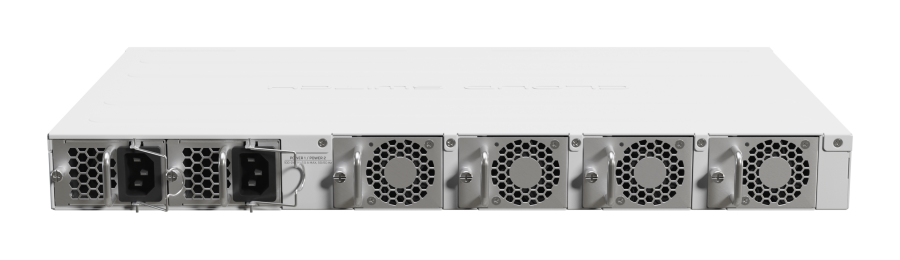

• Power Input:

  • 2 x Hot-swappable PSU (100-240V AC)

  • Nominal current: 12.5 A

• Soğutma: 4 x Hot-swappable fan

• Maximum Power Consumption: 77 W (all components included)

• Operating Temperature: -40°C to +70°C

• Boyutlar: 443 x 265 x 44.5 mm

• Ağırlık: 3.5 kg

• Yazılım: RouterOS v7, License 6

• VLAN, ACL, LACP, MLAG, Jumbo Frame, IGMP/MLD Snooping: Desteklenmektedir​

✅ Usage Scenarios

• Data Centers: It is ideal for meeting high port density and speed requirements.

• Corporate Networks: It provides high-speed connections at the main distribution layer.

• High Speed Connections: It offers high-speed data transmission with 100G QSFP28 and 25G SFP28 ports.

• Redundancy and Reliability: It provides uninterrupted operation thanks to hot-swappable PSU and fans.

📦 Box Contents

• CRS518-16XS-2XQ-RM device

• 2 x 100-240V AC power adapter

• 4 x hot-swappable fan

• Rack mount kit

• User manual
