CRS326-4C+20G+2Q+RM

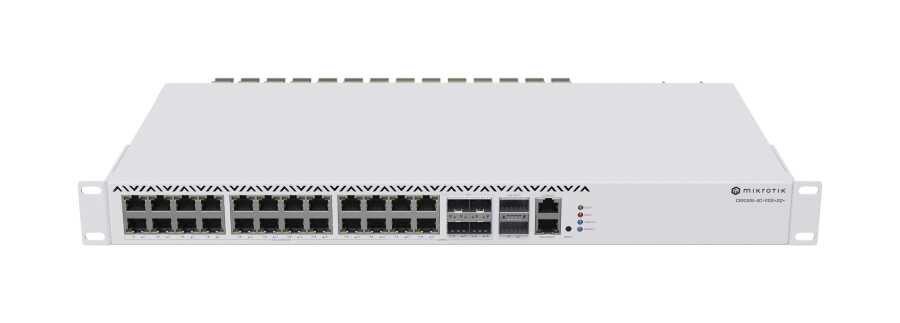

MikroTik CRS326-4C+20G+2Q+RMIt is a manageable, 1U rackmount type switch that offers high-speed and flexible connection options. This device is specifically designed for data centers, media production studios, and networks requiring high bandwidth.

🔧 Technical Specifications

• Model: CRS326-4C+20G+2Q+RM

• İşlemci: Qualcomm Atheros QCA9531, 650 MHz, 1 core

• RAM: 128 MB

• Depolama: 32 MB Flash

• Operating System: RouterOS v7 (Level 6 license)

• Boyutlar: 443 x 200 x 44 mm

• Operating Temperature: -20°C to +60°C

• MTBF: Approximately 200,000 hours @ 25°C

• Sertifikalar: CE, EAC, RoHS

🌐 Network and Connection Properties

• Ethernet Ports:

  • 20 x 2.5G Gigabit Ethernet ports

  • 4 x Combo port (each usable as 2.5G Ethernet RJ45 or 10G SFP+)

• SFP+ Slots: 4 x 10 Gbps SFP+ slots (via Combo ports)

• QSFP+ Slots: 2 x 40 Gbps QSFP+ slot

• Management Port: 1 x 10/100 Mbps Ethernet port

• Console Port: RJ45 (115200 bps, 8N1)

• Switching Capacity: 320 Gbps

• Transmission Speed: 238 Mpps

• MAC Address Table: 32,000 entries

⚡ Power and Cooling Features

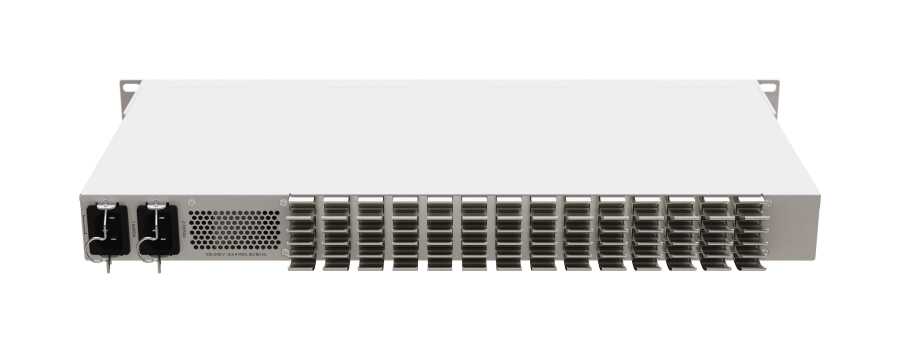

• Power Input: 2 x AC power input (internal redundant power supplies)

• Maximum Power Consumption60 W

• Soğutma: 2 x internal fan (active cooling)

📦 Box Contents

• CRS326-4C+20G+2Q+RM device

• Power cables

• Rack mounting ears and screw set

• Quick installation guide
