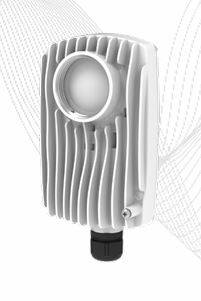

Mimosa C6x Lite Edition (LE), is a high-performance device designed for fixed wireless connections. Operating with an 80 MHz channel width and in the 5.15–6.425 GHz frequency range,Point-to-Point (PTP) ve Point-to-Multipoint (PTMP)It offers high speed and reliability in applications.
Frequency Range:5.15 – 6.425 GHz
Gain:8–30 dBi (with modular antenna support)
Total Speed:
PTP Mode:1.0 Gbps
PTMP Mode:750 Mbps
Maximum Output Power:27 dBm
IP Assessment:IP67 (water and dust resistant)
Boyutlar:175 mm (H) × 70 mm (W) × 61 mm (D)
Ağırlık:0.7 kg
Power Consumption:Maximum 20 W
Mounting Type:Designed for direct mounting, flexible installation options with modular antenna support.
Modular Antenna Support:The C6x Lite comes with an 8 dBi built-in antenna. However, range and performance can be enhanced with modular antenna options (ranging from 8–30 dBi).
Durable Structure:It is resistant to harsh weather conditions thanks to its IP67 certification.
Compact Design:It offers easy installation and aesthetic mounting with its small dimensions.
PTP Connections:Ideal for bridge connections and background connections.
PTMP Applications:It provides high speed and reliability in networks serving multiple subscribers.
Open Field Applications:It is suitable for scenarios requiring wide coverage and high performance in open areas.
Advanced RF Noise Reduction:With new generation RF noise reduction features, cleaner connections.
6 GHz Band Support:Ability to operate in the 6 GHz band with low noise levels.
Management and Monitoring:Easy network management and monitoring with Mimosa Cloud and MMP (Mimosa Management Platform) integration.
