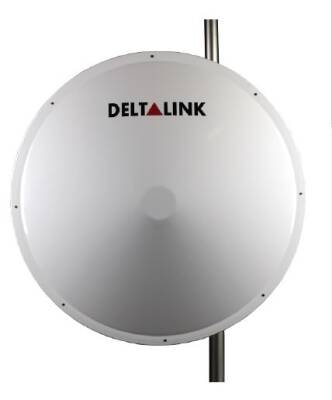

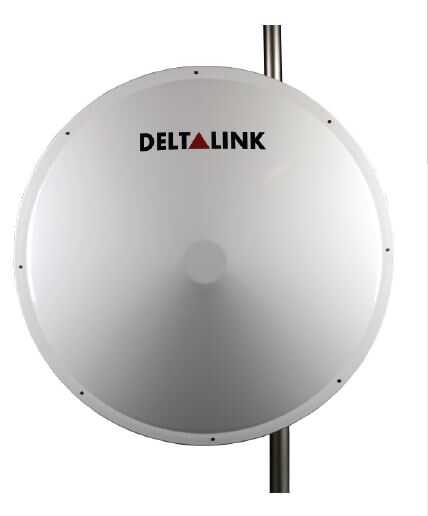

Deltalink ANT-HP7036N, specificallypoint to point (PtP) ve point to multipoint (PtMP)a high-gain one designed for wireless connectionsdish antennaIt is a model. Operating within the frequency range of 5.8 GHz to 7.2 GHz, it provides strong and stable signal transmission over long distances.
| Özellik | Değer |
|---|---|
| Frequency Range | 5.8 – 7.2 GHz |
| Kazanç | 36 dBi |
| 3dB Beamwidth | 3° (typical) |
| VSWR | 1.4:1 (typical) |
| Empedans | 50 Ω |
| Connection Type | 2 × N-Female |
| Front-to-Back Ratio | 58.7 dB |
| Cross Polarization | 28 dB (max), 32 dB (typical) |
| Inter-Port Isolation | 30 dB (max), 45 dB (typical) |
| Özellik | Değer |
|---|---|
| Dimension / Diameter | 1060 mm |
| Weight (including bracket) | 14.5 kg |
| Wind Load (Operating) | 120 km/h |
| Wind Load (Survival) | 180 mph |
| Operating Temperature | Between -50°C and 70°C |
| Mounting Type | Direct mounting (including bracket) |
| Pole Diameter | 25–60 mm |
| Additional Features | Precise pan & tilt alignment |
Point to Point (PtP) ConnectionsIt is ideal for long-distance, high-capacity data transmission.
Microwave LinksIt provides reliable connections for internet service providers and large networks.
Internet Access in Rural AreasIt is suitable for internet infrastructure installations in remote areas.
Industrial and Commercial NetworksIt is designed for professional networks with high performance requirements.
Deltalink ANT-HP7036N antenna,Poyraz NetworkIt can be obtained through. It is recommended that you contact the relevant seller for price information and stock status.
