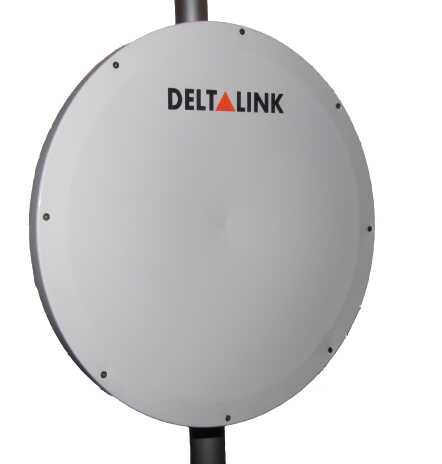

ANT-HP5526N

Product Code : ST00160
Please use vendor login to see the price of the product.

📡 Deltalink ANT-HP5526N — Technical Information


📝 General Introduction

ANT-HP5526N is a high-performance parabolic dish antenna model belonging to the HP Performance Series. It features low side lobe and back lobe characteristics for use in noisy environments. Medium and long distancePTP applications (> 50 km, LOS)It is suitable for. It is designed for PTP, PTMP, and Mesh networks with MIMO support.


⚙️ Electrical Characteristics

Frequency Range4800 – 6100 MHz
Kazanç26 dBi
3 dB Beamwidth7.5° (typical)
VSWR1.4:1 (typical)
Empedans50 Ohm
Maximum Input Power25 W
Konnektör2 × N-Female
Side LobesETSI EN 302.326-3 DN1-DN5
Front-to-Back Ratio37 dB
Cross Polarization (Cross Pol)25 dB (maximum), 30 dB (typical)
Port-to-Port Isolation32 dB (maximum), 45 dB (typical)

🛠 Mechanical / Physical Properties

Diameter / Size480 mm
Weight (Including Bracket)3.8 kg
Wind Load (Operating)140 km/h
Wind Load (Survival)220 mph
Operating Temperature–50 °C to +70 °C
Assembly CompatibilityDirect mounting support (compatible with 25 – 60 mm diameter poles)
Additional FeaturesPrecise Pan & Tilt alignment support
