ANT-5523N

Product Code : ST00156
Please use vendor login to see the price of the product.

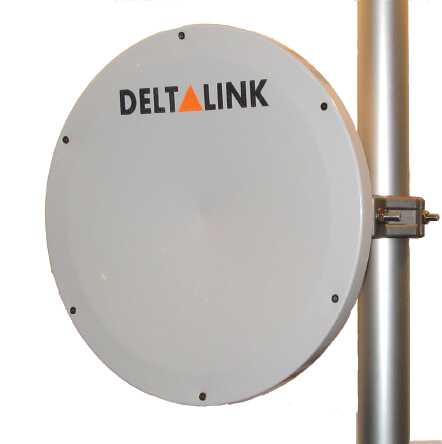

📡 Deltalink ANT-HP5523N- Technical Information


📝 General Introduction

  • HP Performance Series –ANT-HP5523N

  • 4.8 – 6.1 GHz frequency range high-performance parabolic antenna

  • Suitable for use in noisy environments;low side lobe / low back lobedesigned with values

  • Ideal for PTP, PTMP, and Mesh networks, especially for LOS scenarios over 50 km.


⚙️ Electrical Specifications

Frequency Range4800 – 6100 MHz
Kazanç23 dBi
3 dB Beamwidth9.0° (typical)
VSWR1.4:1 (typical)
Empedans50 Ohm
Maximum Input Power25 W
Konnektör2 × N-Female
Side LobesETSI EN 302.326-3 DN1-DN5
Front-to-Back Ratio (Back / Front)35 dB
Cross Polarization (Cross Pol)23 dB (maximum), 30 dB (typical)
Port-to-Port Isolation32 dB (maximum), 45 dB (typical)

🛠 Mechanical / Physical Properties (Mechanical Specifications)

Diameter / Size370 mm
Weight (Including Bracket)3.3 kg
Wind Load (Operating)160 km/h
Wind Load (Survival)230 km/h
Operating Temperature-50 °C to +70 °C

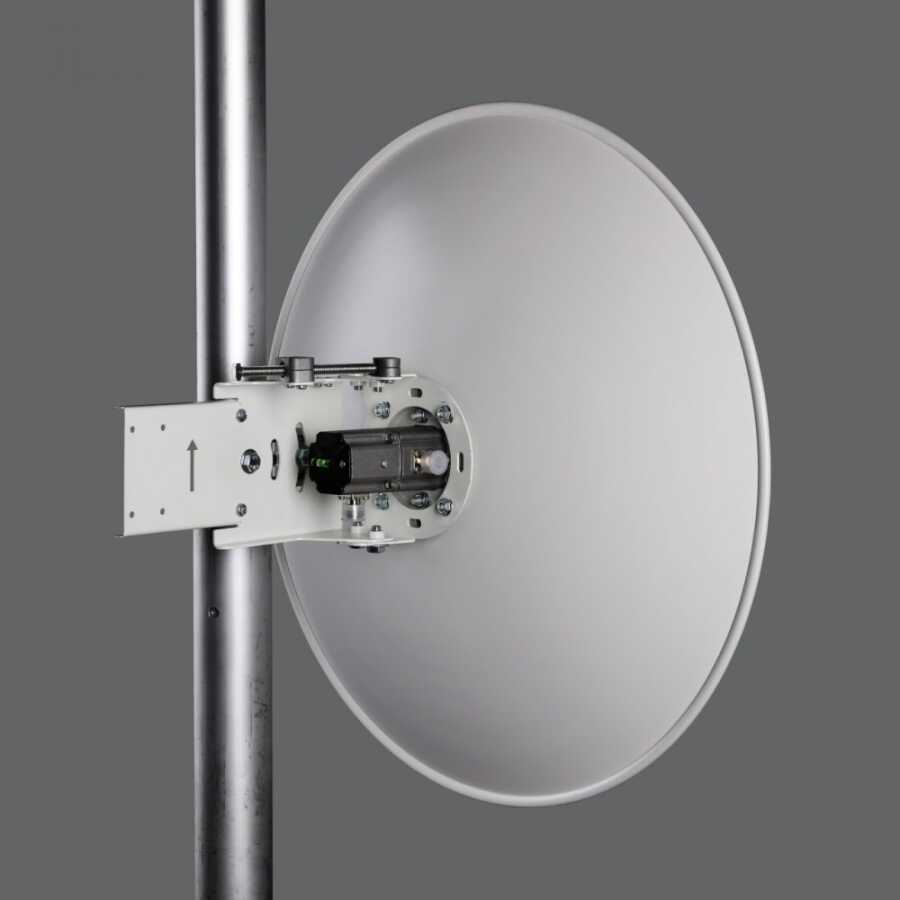

Assembly Kit / StyleSuitable for direct mounting, compatible with 25-60 mm diameter poles
Additional FeatureCorrect pan & tilt alignment feature
