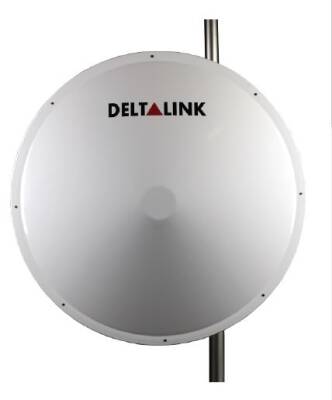

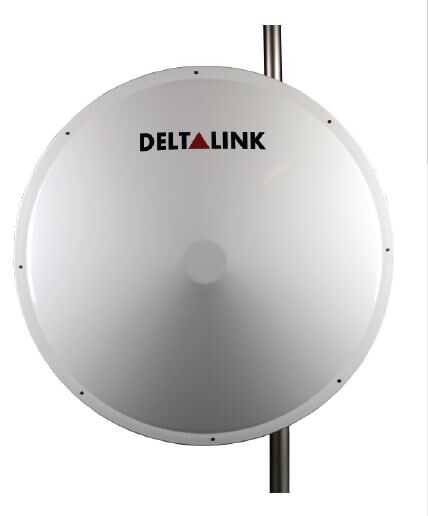

ANT-5530X, especiallyLOS (Line-of-Sight)It is a high-quality and high-efficiency parabolic antenna model designed for point-to-point (PTP) applications over 80 km under conditions. It is suitable for MIMO (Multiple Input Multiple Output) solutions and operates within a wide frequency range from 4.7 GHz to 6.4 GHz.
Frequency Range:4.7 – 6.4 GHz
Kazanç:30 dBi
3dB Beamwidth:4.5° (typical)
VSWR:1.5:1 (typical)
Empedans:50 Ohm
Maximum Input Power:25 W
Connection Type:2 × N-Female
Cross Polarization:28 dB (max.), 34 dB (typical)
Isolation Between Ports:Information is not available.
Side Lob:ETSI EN 302.326-3 DN1-DN5
Diameter / Size:700 mm
Weight (including bracket):4.7 kg
Wind Load (Operating):130 km/h
Wind Load (Survival):200 km/h
Operating Temperature:Between -50°C and +70°C
Assembly Kit:Included / Direct Mounting (for poles with a diameter of 25–60 mm)
Extra Features:Precise Pan & Tilt alignment (0.1° accuracy)
PTP (Point-to-Point) Connections:High-speed data transmission up to 120 km.
PTMP (Point-to-MultiPoint) Networks:Data transmission to multiple points.
Mesh Network Systems:Providing network coverage in wide areas.
Open Field Applications:High-performance connections in open areas.
