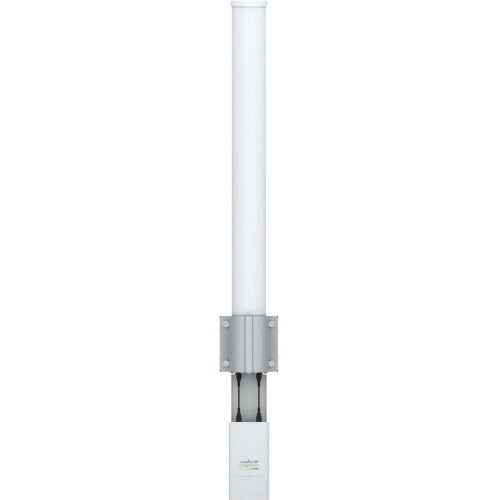

AMO-2G10 AIRMAX OMNI ANTENNA

📡 Ubiquiti AMO-2G10 – Technical Specifications

Ubiquiti AMO-2G10, Operating in the 2.4 GHz band., designed for outdoor environmentsomnidirectional antendir. BaseStations supporting airMAX technologyIt is compatible and is especially used at distribution points that require wide area coverage.

📶 RF Characteristics

• Frequency Range:2.35 – 2.55 GHz

• Gain:10 dBi

• Polarizasyon:

  • Bidirectional (Dual Linear)

  • Hem Vertical hem Horizontal

• VSWR:1.5:1 max.

• Beamwidth:

  • Azimuth (Horizontal): 360°

  • Elevation (Vertical): ~7°

• Maximum Input Power:100W

• Antenna Type:

  • Omni-directional(Versatile)

  • Dual Polarity- Suitable for MIMO support

🔌 Physical Properties

• Connection Type:2x RP-SMA Female(Weather resistant)

• Mounting Type:

  • Direct mountingready for

  • It comes with the necessary hardware (U-bracket).

• Boyutlar:Uzunluk: 1.14 metersÇap: 38 mm

• Ağırlık:0.82 kg

🌧️ Environmental Resilience

• Wind Resistance:Up to 200 km/h

• Operating Temperature-40°C to +80°C

• IP Protection Class:IPX5+- resistant to rain and outdoor weather conditions

🛠️ Uyumluluk

• Ubiquiti Rocket M2 ile fully compatibleAlso, it can be used with other 2.4 GHz access points (with compatible connector and mounting).

• airMAX TechnologyOptimized with: High efficiency and interference reduction thanks to the TDMA structure.

📦 Box Contents

• AMO-2G10 Antenna

• Direct mounting kit (U-bolts, clamps)

• RF cable connections

• Quick setup guide

🎯 Usage Scenarios

• Wide area coverage (campus, factory, agricultural area)

• Equal signal distribution to a large number of clients.

• Point-to-multipoint base station applications

• WISP distribution centers
