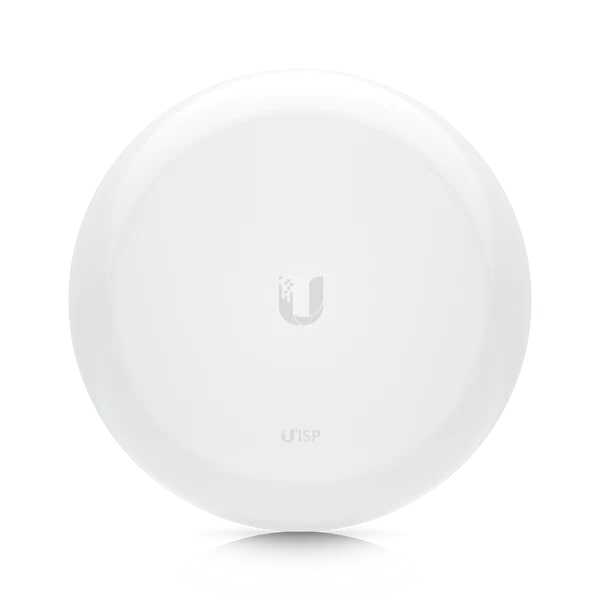

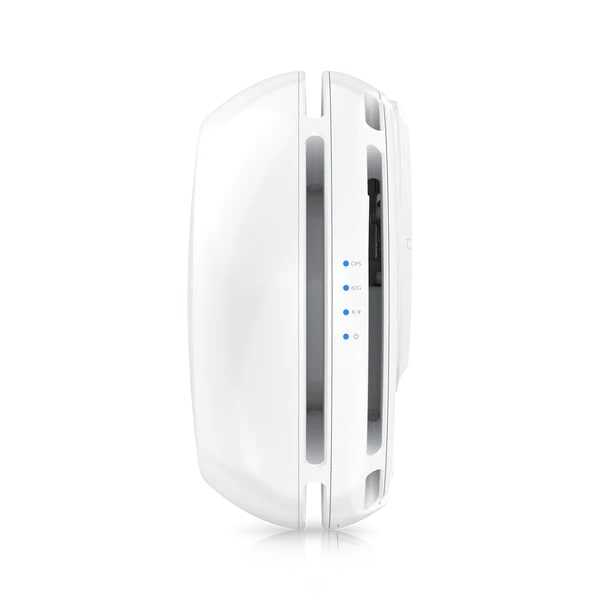

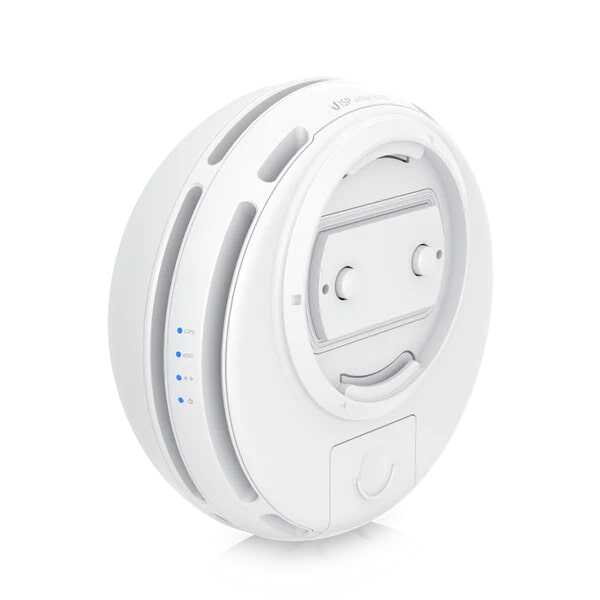

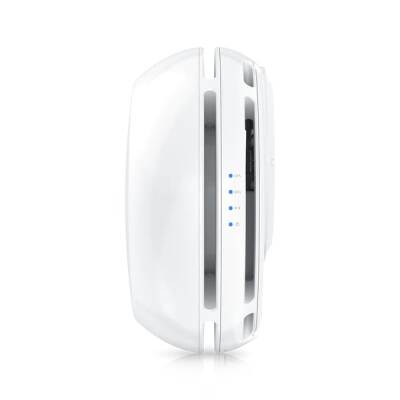

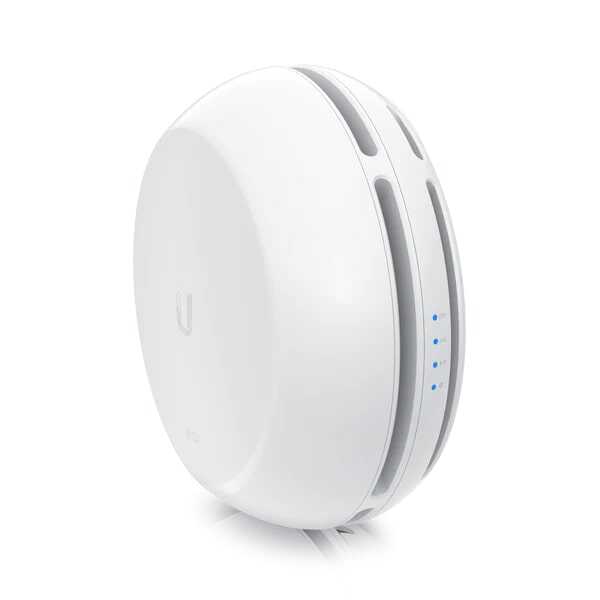

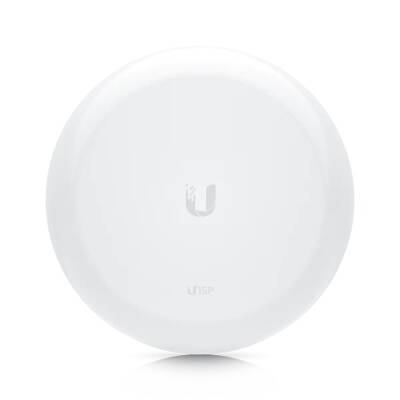

airFiber 60 HD, Ubiquiti's60 GHz mmWaveusing technology,high-speed point-to-point (PtP)It is a wireless bridge solution. Specifically,very high bandwidth, low latency, andlong distanceIt is designed for wireless data transmission. The "HD" model,improved antenna design and much higher throughputstands out with.
Frequency Range:
57 – 71 GHz (60 GHz mmWave band)
5 GHz backup connection (failover) desteği
Wireless Standards:
IEEE 802.11ay (60 GHz)
IEEE 802.11ac (5 GHz backup channel)
Maximum Actual Data Rate (Throughput):
6+ Gbps (duplex, total)
Net data transmission capacity: Approximately3.5 Gbps
Connection Distance: Up to 2+ kilometers(line of sight – LoS)
MIMO Structure:2x2 MIMOBeamforming and automatic alignment supported.
Antenna Type:High-gain 60 GHz directional parabolic antenna
Gain:43 dBi (60 GHz band)
Antenna Size:Çap: ~400 mm
Ethernet Port:
1x 10G SFP+
1x 2.5GbE RJ45 (PoE input)
1x 1GbE RJ45 (Management port)
Power Input:
802.3bt (PoE++)– minimumPoE 50V, 1.2A önerilir
Power Consumption: ~25–30W
Processor and RAM:
Ubiquiti proprietary processor architecture
High-performance network chip
Device Dimensions:Yaklaşık 425 x 425 x 275 mm
Ağırlık:~4.8 kg(including mounting fixtures)
IP Protection Class:IP67- resistant to harsh external environmental conditions
Wind Resistance:Up to 200 km/h
Management Platform:
airOS LTU
UISP (UNMS) desteği
Supported Features:
Dynamic frequency selection (DFS)
OTA (over-the-air) update
Spectrum analyzer
SNR monitoring, throughput test
VLAN, QoS, SNMP support
airFiber 60 HD device
Direct mounting apparatus
Waterproof Ethernet feedthrough device
PoE adapter(not included in most packages, may need to be purchased separately)
High-speed building-to-building connections with fiber alternatives
WISP backhaul connection
Wireless bridging within industrial facilities or campuses
UHD video surveillance infrastructures
Low latency dedicated connection solutions (VoIP, video streaming)
