CubeG-5ac60ay-SA

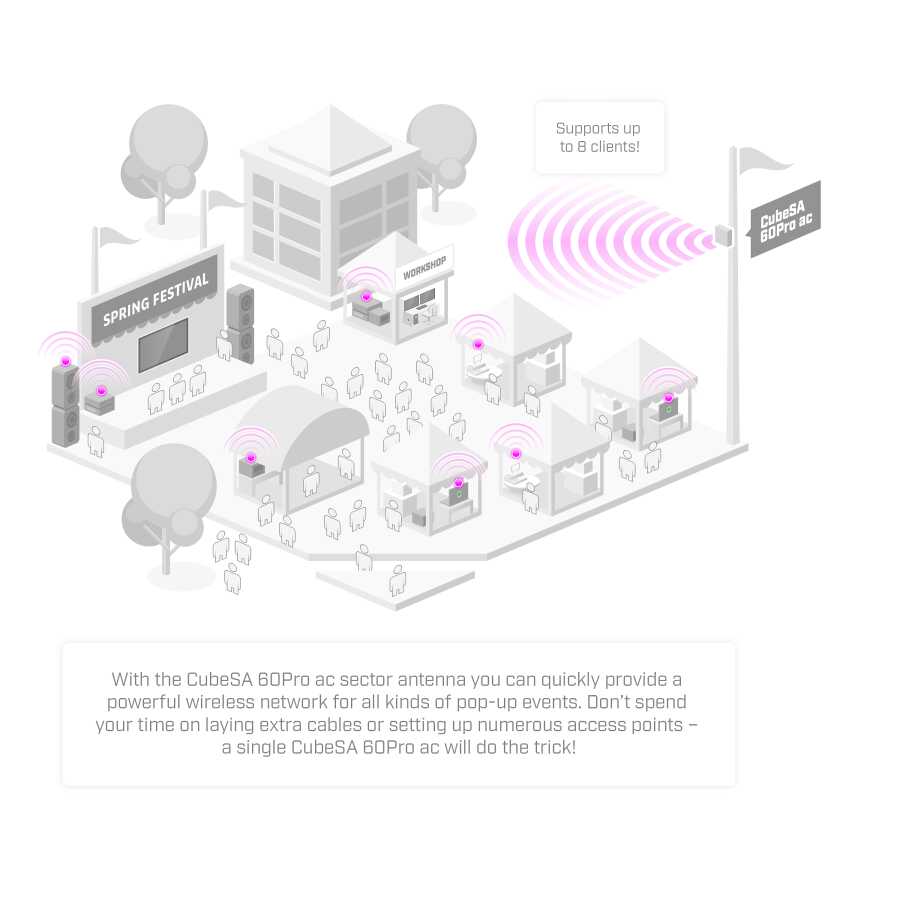

MikroTik CubeG-5ac60ay-SA(CubeSA 60Pro ac) is a sector antenna solution designed for high-speed and reliable point-to-multipoint (PtMP) wireless connections operating in the 60 GHz frequency band. This device, which supports the 802.11ay standard, also ensures connection continuity in adverse weather conditions with its 5 GHz backup link feature.

⚙️ Technical Specifications

• Product Code: CubeG-5ac60ay-SA

• Mimari: ARM 32-bit

• İşlemci: Qualcomm IPQ-4019, 4 cores, 716 MHz

• RAM: 256 MB

• Depolama: 64 MB Flash

• Operating System: RouterOS (License Level 4)

• Boyutlar: 115 x 211 x 90 mm

• Operating Temperature: Between -40°C and +70°C

• MTBF: Approximately 200,000 hours @25°C

• IP Protection Class: IP66

• Sertifikalar: CE, FCC, IC, EAC, ROHS

🔌 Power and Connection

• Ethernet Port: 1 x 10/100/1000 Mbps (Gigabit Ethernet)

• Power Input: 802.3af/at supported PoE (18–57 V)

• Maximum Power Consumption:13 W

• Soğutma: Pasif

📡 Wireless Features

• 60 GHz Connection:

  • Standartlar: 802.11ad / 802.11ay

  • Antenna Gain: 11° beamwidth

  • Maximum EIRP: 40 dBm

  • WiGig Chipset: QCA6438

  • WiGig Antenna Module: SWL-QD46

• 5 GHz Backup Connection:

  • Standartlar: 802.11a/n/ac (Wi-Fi 5)

  • Maximum Data Rate: 433 Mbps

  • Antenna Gain: 11.5 dBi

  • Antenna Beamwidth: 35°

  • MIMO: 1x1

  • Şifreleme: AES

🧭 Other Features

• GNSS Support: GPS (MT3337V)

• Maximum Connection Distance: Up to 600 meters (in PtMP mode)

📦 Box Contents

• 1 x CubeG-5ac60ay-SA device

• 1 x 24V 0.8A power adapter

• 1 x Gigabit PoE injector

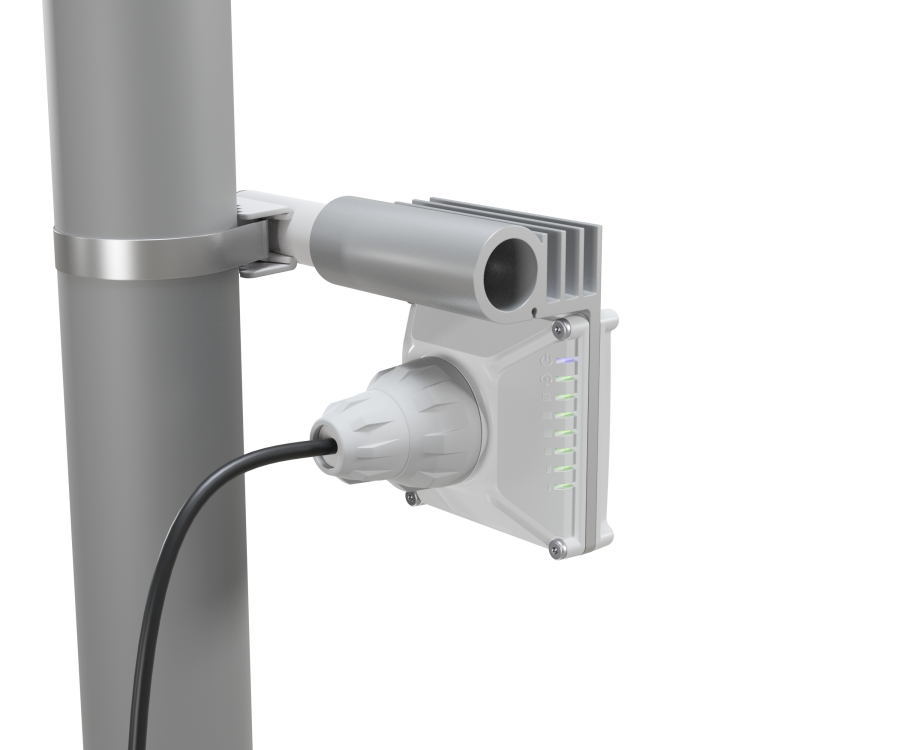

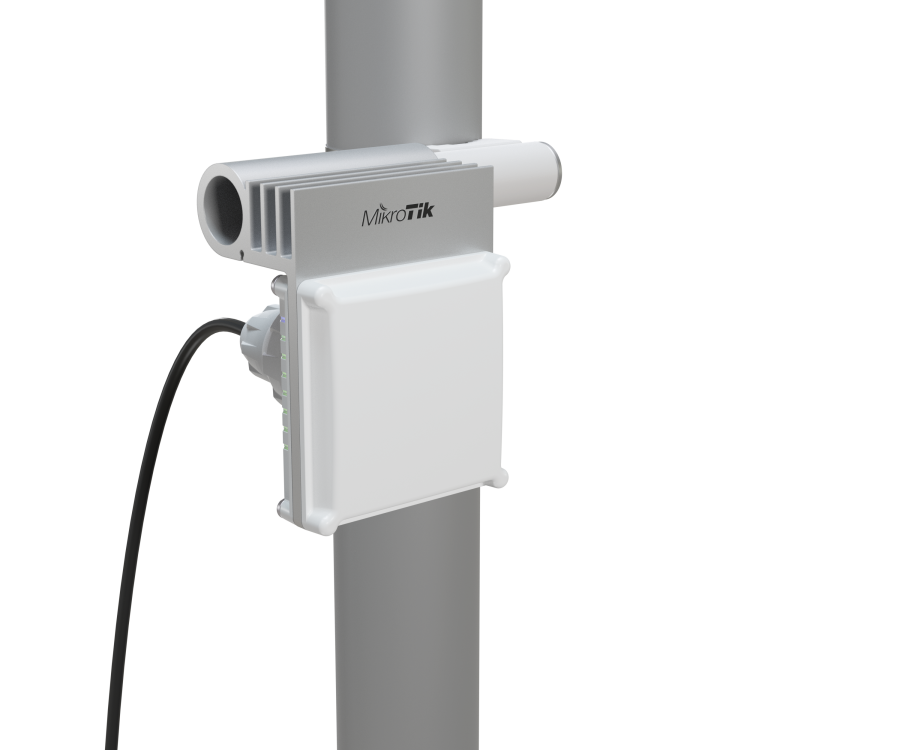

• 1 x Mounting apparatus

• 1 x Hose clamp
