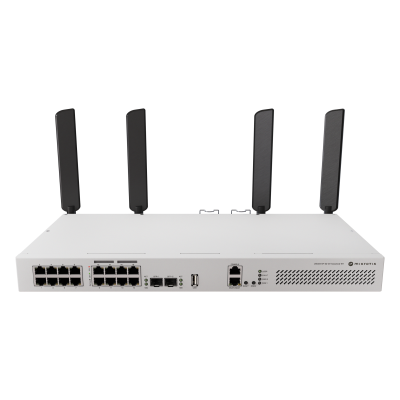

MikroTik CRS418-8P-8G-2S+5axQ2axQ-RM

A powerful one developed for medium and large-scale networksCloud Router Switch modelidir.
This model, unlike the classic CRS series, has built-inWi-Fi 6 (4x4 MIMO, dual-band)also provides support.

• 8x PoE output gigabit port enables direct power supply to devices.

• Total of 17x Gigabit Ethernet ports

• 10G fiber connection capability via 2x SFP+ slot

• Internal 4x4 MIMO Wi-Fi 6 access point

• RouterOS v7 and flexible management options with L3 HW Offloading support

⚙️ Hardware & Performance

• CPU: Quad-Core ARM IPQ-8072A, 2.2 GHz

• CPU Architecture: ARM 64-bit

• RAM: 1 GB DDR3

• Storage: 128 MB NAND

• Switch Chip: 98DX226S

• Operating System: RouterOS v7 (L5)

🔌 Ports & Connections

• 17 × Gigabit Ethernet (8 × PoE-out)

• 2 × 10G SFP+ uplink

• 1 × Gigabit Management port (directly connected to the CPU)

• 1 × USB 3.0 (Type-A)

• Internal Wi-Fi 6 (4x4 MIMO)

  • 2.4 GHz: 802.11b/g/n/ax – 5 dBi antenna

  • 5 GHz: 802.11a/n/ac/ax – 6 dBi antenna

⚡ PoE Features

• PoE-out over 8 ports (802.3af/at & 24V Passive PoE)

• Total PoE power: 150 W

• Max. output current (at input below 30 V): 1.1 A / port

• Max. output current (at input above 30 V): 0.56 A / port

🔋 Power & Cooling

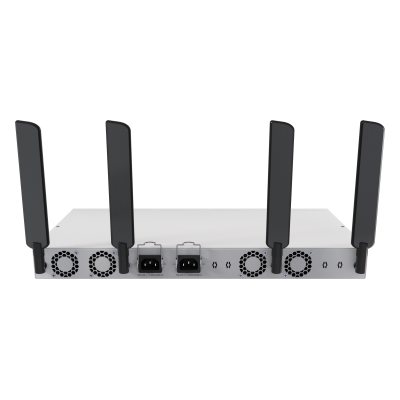

• Dual AC power input (100–240 V, redundant)

• Power consumption: 43 W (idle) / 227 W (maximum)

• Active fan cooling system

📐 Physical Properties

• Dimensions: 44 × 250 × 443 mm

• Dimensions (with antenna): 210 × 250 × 443 mm

• Operating temperature: –20 °C ~ +70 °C

🛠️ Software & Management

• RouterOS v7 (L2/L3 switching & routing)

• L3 HW Offloading support

• VLAN, ACL, QoS, CAPsMAN

• Advanced monitoring & traffic shaping

• SNMP support
