CRS328-24P-4S+RM

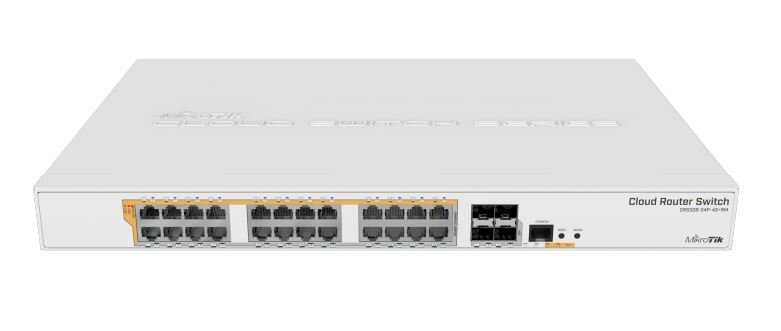

MikroTik CRS328-24P-4S+RM, it is a manageable switch with 24 Gigabit Ethernet ports and 4 10G SFP+ slots, PoE supported, and housed in a 1U rackmount chassis. This device offers both Layer 2 and Layer 3 features and comes with dual boot support that allows switching between RouterOS and SwOS.

🔧 Technical Specifications

• Model: CRS328-24P-4S+RM

• İşlemci: Marvell 98DX3236, 800 MHz, 1 core

• RAM: 512 MB

• Depolama: 16 MB Flash

• Operating System: Dual Boot – RouterOS (Level 5 license) and SwOS

• Boyutlar: 443 x 305 x 44 mm (1U rackmount)

• Operating Temperature: -20°C to +60°C

• Maximum Power Consumption (including PoE): 494 W

• Device's Own Consumption: 44 W

🌐 Network and Connection Properties

• Ethernet Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet (PoE supported)

• SFP+ Ports: 4 x 1/10 Gbps SFP+ slot (modules not included)

• Console PortRJ45

• MAC Address Table: 16,000 entries

• Switching Capacity: 128 Gbps

• Transmission Speed: 64 Mpps

• VLAN Support: IEEE 802.1Q, IEEE 802.3ad

⚡ Power and PoE Features

• Input Voltage: 100–240 V AC, 50/60 Hz

• Power Supply: Internal 500 W

• PoE Output:

  • PoE output through all Ethernet ports (Ether1–Ether24)

  • 802.3af/at (PoE/PoE+) and Passive PoE support

  • Maximum 30 W (at high voltage), 26 W (at low voltage) for each port

  • Total PoE output power: 450 W (3 x 150 W for each of the 8 ports)

📦 Box Contents

• CRS328-24P-4S+RM device

• Power cable

• Rackmount ears and mounting screws

• Quick installation guide
