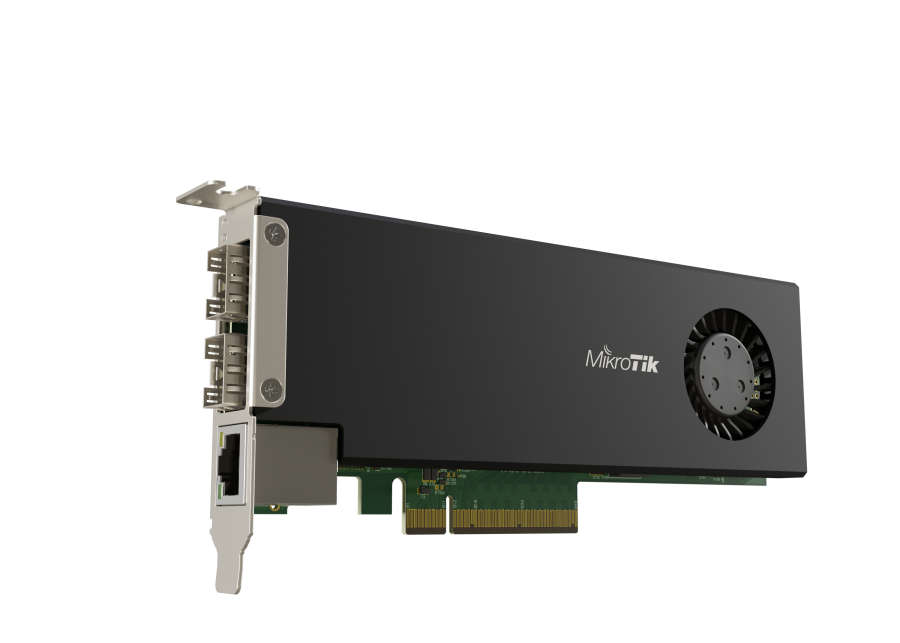

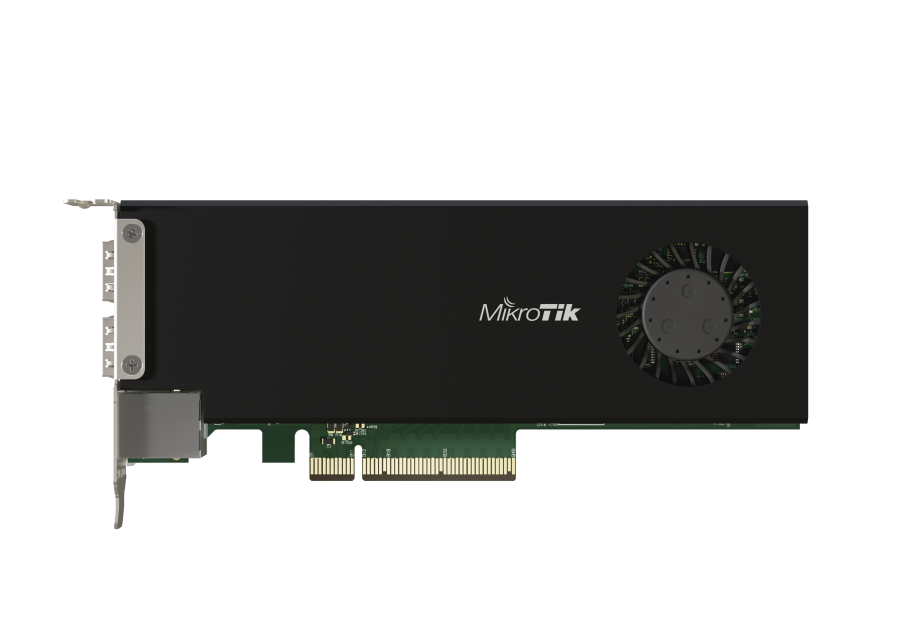

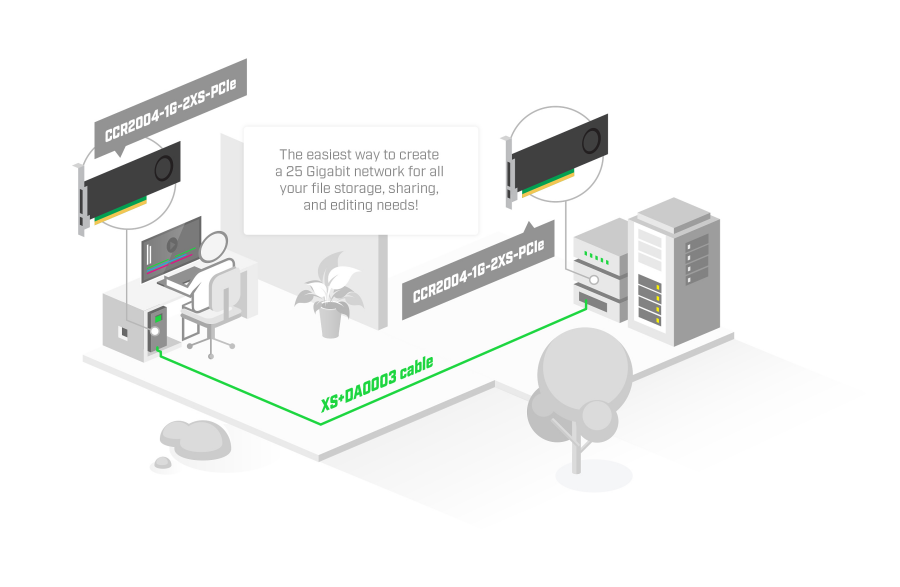

MikroTik CCR2004-1G-2XS-PCIe(product code:CCR2004-1G-2XS-PCIe) , It is a smart PCIe network interface card that serves as a fully functional router and can be integrated into your servers. This device is a practical and space-saving solution for creating 25 Gigabit networks.
İşlemci: Annapurna Labs AL32400, quad-core, 2.0 GHz ARMv8 64-bit
RAM: 4 GB DDR4
Depolama: 128 MB NAND
Network Connections:
2 x 25G SFP28 port
1 x 1G Ethernet port
PCIe Interface: PCIe Gen3 x8
Boyutlar: 170 x 69 x 18 mm
Maximum Power Consumption: 25 W
Operating Temperature: -20°C to +60°C
Operating System: RouterOS (License level 6)
CCR2004-1G-2XS-PCIe, when integrated into your servers, can perform the following functions:
High Speed Network Connection: With its 25G SFP28 ports, it is ideal for applications requiring high bandwidth.
Routing and Security: RouterOS operating system offers advanced routing, firewall, and user management features.
Space Saving: Integrated into the server, it eliminates the need for a separate router, thereby saving data center space.

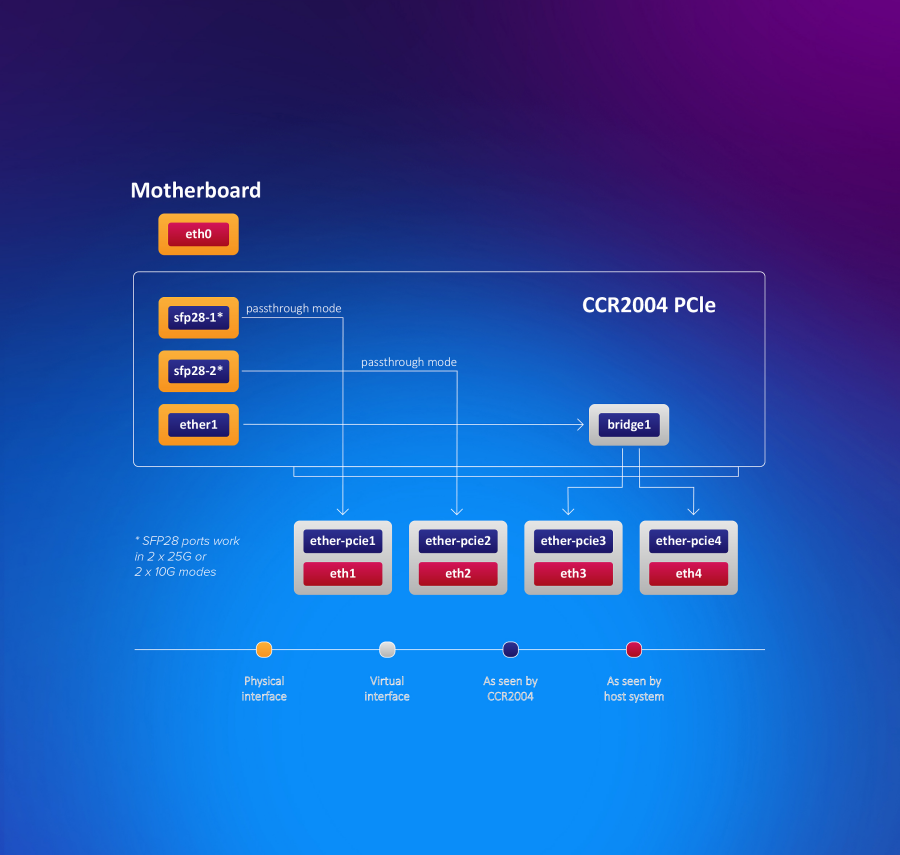

The device appears as four virtual Ethernet interfaces when connected to the server via PCIe.
Two interfaces operate in direct pass-through mode to 25G SFP28 ports.
The other two virtual Ethernet-PCIe interfaces are bridged with a 1G Ethernet port.
Data Centers: It simplifies the infrastructure by combining high-speed connections and routing functions in a single device.
Corporate Networks: It meets corporate network needs with advanced routing and security features.
Service Providers: It is ideal for offering customers high bandwidth and reliable connectivity.
1 x CCR2004-1G-2XS-PCIe device
Assembly accessories
User manual
