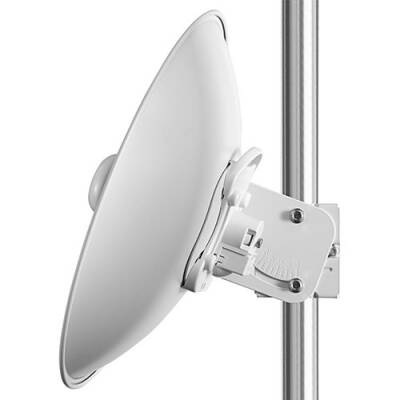

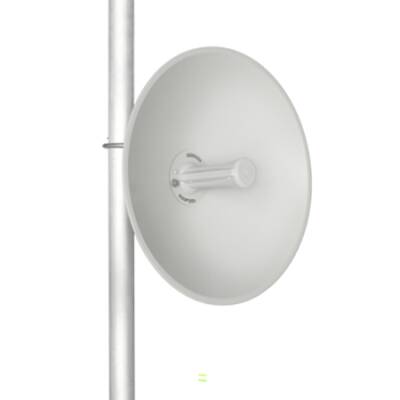

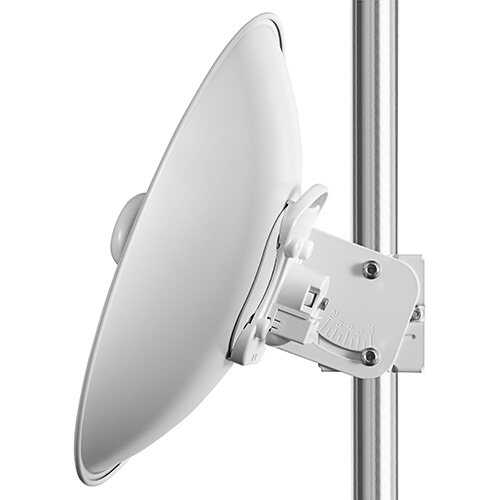

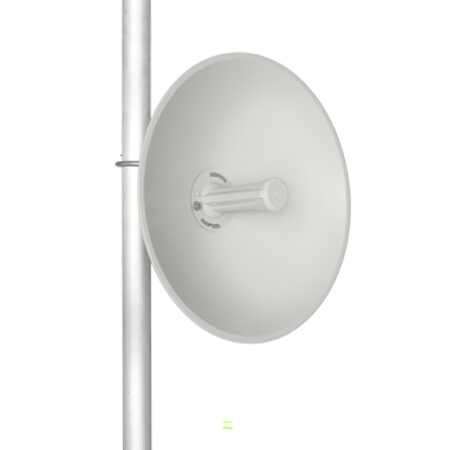

CAMBIUM ePMP Force 300-25 High Gain Radio (ROW) - 4 PACK

📡 General Description

Cambium ePMP Force 300-25(ROW version), Cambium’sIn the 5 GHz bandemployee, high-performingSubscriber Module (SM)It is a model. Bothpoint to point (PtP)and alsopoint-to-multipoint (PtMP)It can be used in topologies. With its 25 dBi integrated antenna, it provides long-distance and high data transmission.4-pack (4 PACK), advantageous for multiple installations.

⚙️ Technical Specifications

• Model Name:ePMP Force 300-25 High Gain Radio

• Frequency Range:4910 – 5970 MHz(ROW = Rest of World; subject to local regulations)

• Antenna Gain:25 dBi integrated directional antenna

• Antenna Beam Width:

  • Horizontal: 10°

  • Vertical: 10°

• MIMO:2x2 MIMO

• Maximum Data Rate:600+ Mbps (with 80 MHz channel bandwidth)

• Channel Width:20 / 40 / 80 MHz supported

• Modülasyon:QPSK – 256 QAM

• Ethernet Port:1 × 10/100/1000 Mbps (Gigabit Ethernet)

• Zamanlama:TDD / GPS synchronization supported

• Protokol:ePTP & Standard TDD

• Power Consumption:Maximum ~12W

• Besleme:30V Gigabit PoE (PoE adapter included)

• Montaj:Direct or wall mounting supports

• Software Compatibility:Fully compatible with ePMP 3000 series Access Points.

🧱 Physical Properties

• Protection Class:IP55 (suitable for outdoor use)

• Operating Temperature:-30°C to +60°C

• Dimensions (approximate):47.7 × 28.4 × 5.8 cm

• Ağırlık:~2.8 kg

• Wind Resistance:Up to 200 km/h

📦 Package Contents (4 PACK)

• 4 × Force 300-25 device

• 4 × Assembly kit

• 4 × PoE adapter

• 4 × Power cable

• User manuals

🌍 Application Areas

• Wireless service providers (WISP)

• Long distance customer connections

• High-speed internet access in rural areas

• Camera, IoT, corporate network connections

✅ Advantages

• Long-range powerful signal with a high-gain 25 dBi integrated antenna

• Capacity over 600 Mbps

• Superior performance in high-density networks with GPS synchronization support.

• IP55 outdoor durability

• Cost advantage and quick installation with the 4-pack.
