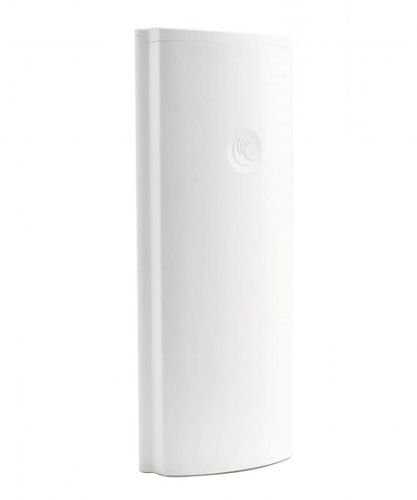

CAMBIUM ePMP 3000 Sector Antenna

📡 General Description

Cambium ePMP 3000 Sector AntennaCompatible with the ePMP 3000 Access Point, a high-performance device operating in the 5 GHz band.It is a MIMO 4x4 sector antenna.This antenna,high density PtMP (Point-to-Multipoint)It is designed for distributions. It is optimized to fully utilize beamforming and MU-MIMO (multi-user multiple input/multiple output) features.

⚙️ Technical Specifications

• Model Name:Cambium ePMP 3000 Sector Antenna

• Compatible Models:ePMP 3000 AP (fully compatible with 4x4 MU-MIMO support)

• Frequency Range:4910 – 6135 MHz

• Antenna Type:4 × 4 MIMO sector panel antenna

• Channel Width Support:20 / 40 / 80 MHz

• Kazanç:

  • 17 dBi (typical)

• Beamwidth:

  • Azimuth: 90°

  • Elevation: 6°

• Front-to-Back Ratio (F/B):≥ 30 dB

• VSWR (return loss):< 1.5:1 typical

• Number of Ports:4 pieces of N-Type female connectors (for 4x4 MIMO)

• Polarizasyon:Dual slant 45° (cross-polarized)

🧱 Physical Properties

• Protection Class: IP65

• Operating Temperature:-40°C to +60°C

• Boyutlar:49 × 16.5 × 9.4 cm

• Ağırlık:Approximately 5.4 kg

• Wind Resistance:190 km/h

• Montaj:

  • Hardware for direct mounting is included.

  • Adjustable tilt mechanism for precise alignment

🌍 Application Areas

• WISP deployments requiring wide area coverage

• Rural or semi-urban PtMP solutions

• High user density areas

• Network operators who want to fully benefit from 4x4 MU-MIMO technology

✅ Advantages

• 4x4 MIMO supportwith high capacity (full MU-MIMO compatibility with ePMP 3000)

• Wide 90° horizontal coverage area

• Superior insulation and noise reduction across sectors.

• Robust, weather-resistant outdoor design

• It comes with a direct mounting fixture for easy installation.

📦 Package Contents

• 1 × ePMP 3000 Sector Antenna

• 1 × Mounting apparatus

• 4 × RF cable (for connection to ePMP 3000 AP)

• Installation guide
